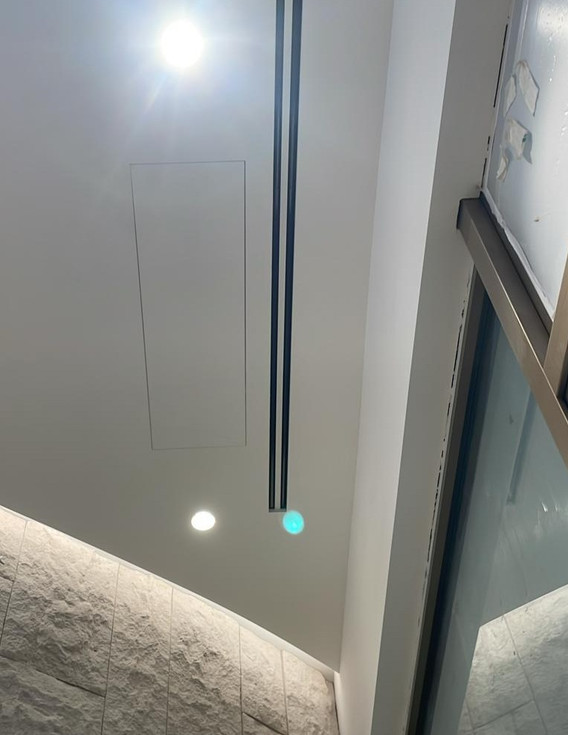

ZX: Linear Trimless Slot Diffuser

The Aluminum Linear Trimless Slot Diffuser is a linear slot-out diffuser (vent ) . Its concealed design requires a 16mm height allowance for the ceiling panel, achieving the desired concealed effect. The built-in crab-claw-shaped electroplated blades allow for adjustable airflow angle. Suitable for high-end interior design projects and showrooms.

Standard Construction

  • Material: Extruded Aluminum
  • Nominal length: 100mm - 2500mm
  • Nominal Width: Neck 39mm - Neck 115mm
  • Oversize: Multiple sections with aglinment pins
  • Curve/Mitered Corner/Trapezium construction also available
  • Finish: Enamel Paint/Powder Coat/Mil Finish/PVDF/etc.,
  • Accessories: Blank-off Plate/Perforated Plate

Standard Size (19mm Slot Width)

  • 1 pit = 77mm wide ceiling (19mm vent pit) (39mm vent neck)
  • 2 pits = 115mm wide ceiling (57mm vent pit) (77mm vent neck)
  • 3 pits = 153mm wide ceiling recess (95mm vent) (115mm vent neck)

How to order

  • ZX matte white 2 pits-plus black-surface 1200mm*wind throat 39mm
  • Code: ZX/2/+BP/BASE/1200mm*Neck39mm/Matt White
1 pit = 77mm wide ceiling (19mm vent pit) (39mm vent neck)
2 pits = 115mm wide ceiling (57mm vent pit) (77mm vent neck)
3 pits = 153mm wide ceiling (95mm vent pit) (115mm vent neck)

BASE SIZE

29*16MM frame (16MM is the height of the cover plate)
29* Less than 16mm border (the 16mm section needs to be sawed off by __mm)

FRAME

Standard (black inner liner)
Non-standard (all-white inner tube)

CORE

No additional accessories required
Blank-off Plate (+BP)
Insect Screen Mosquito Net (+IS)
Perforated Plate (+PP)
Plenum Box (G.I. Steel)

ACCESSORIES

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
