Aluminum Trisquare Diffuser

Aluminum Trisquare Diffuser (common: 曲尺嘴) is an aluminum L-shaped air nozzle. The three-dimensional design of the front and bottom is suitable for shielding indoor split air conditioners and other ceiling designs. In its structure, the blades on the front and bottom are equipped with slingshots for users to remove and clean and maintain. The blades can choose 0 degree/30 degree/45 degree wind direction, and the outer frame can choose 20/25/32 or borderless style. Special styles can also be customized according to requirements. In an environment with a large temperature difference, it is recommended to use fiber material ETRI series or NTRI series.

32 mm Frame (32 sides)
25 mm Frame (25 sides)
20 mm Frame (20 sides)
Frameless

FRAME

0 degrees to the front, 30 degrees to the bottom,
30 degrees from the front, 0 degrees from the bott
Front and bottom 0 degrees

BLADE DEFLECTION

Removing the gallbladder from the front or bottom.
Frontal dissection of the gallbladder, bottom obst

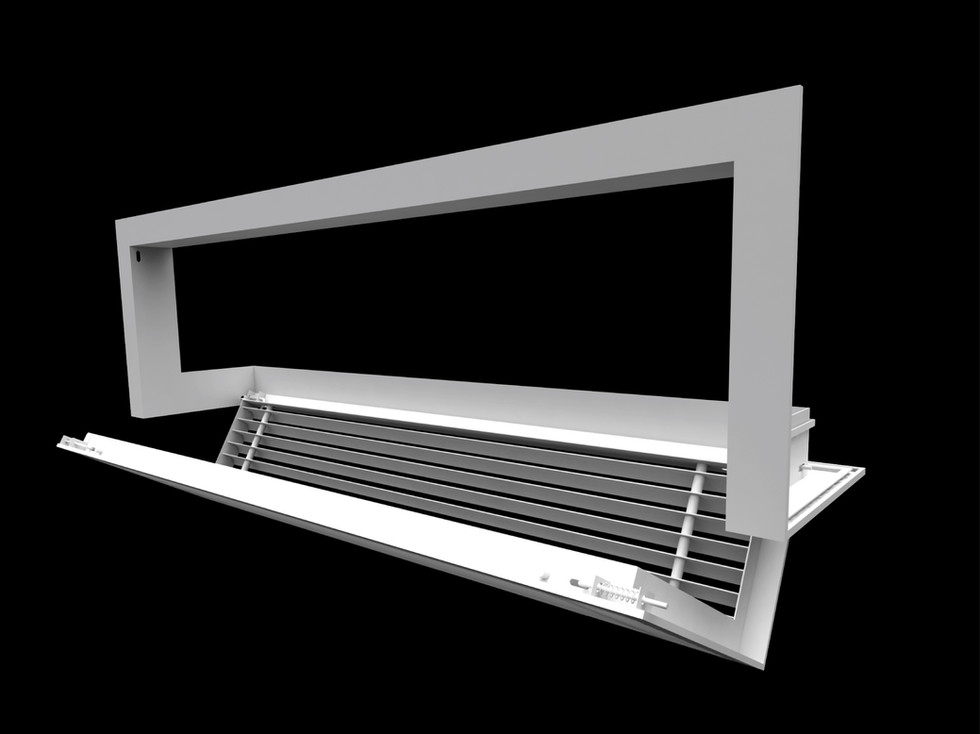

Hinged type (the entire inner liner can be disasse

Method of removing the gallbladder
