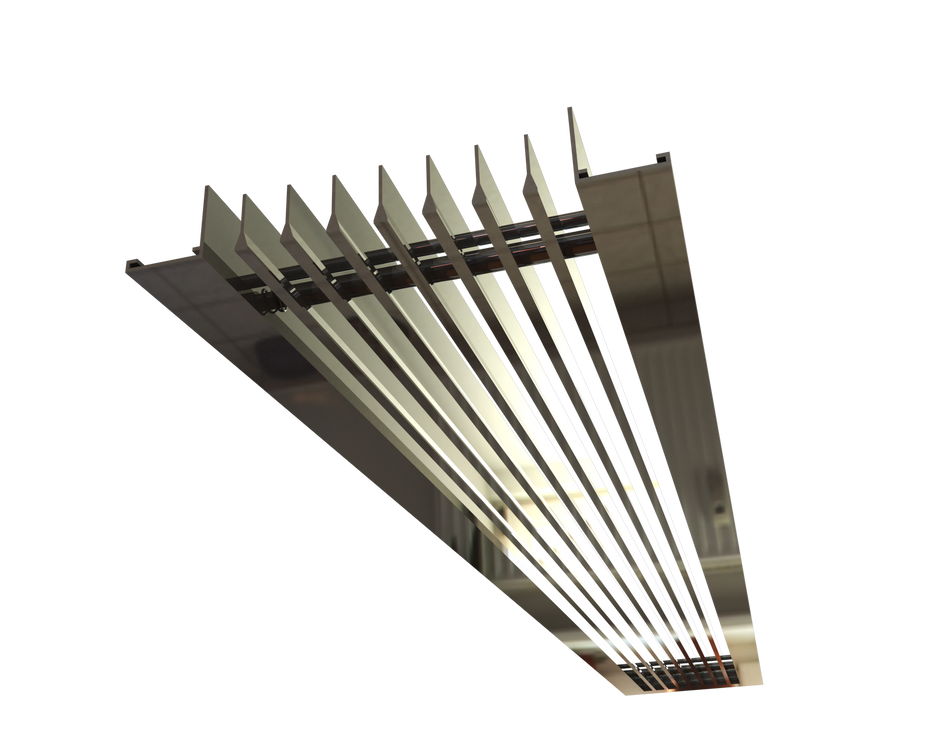

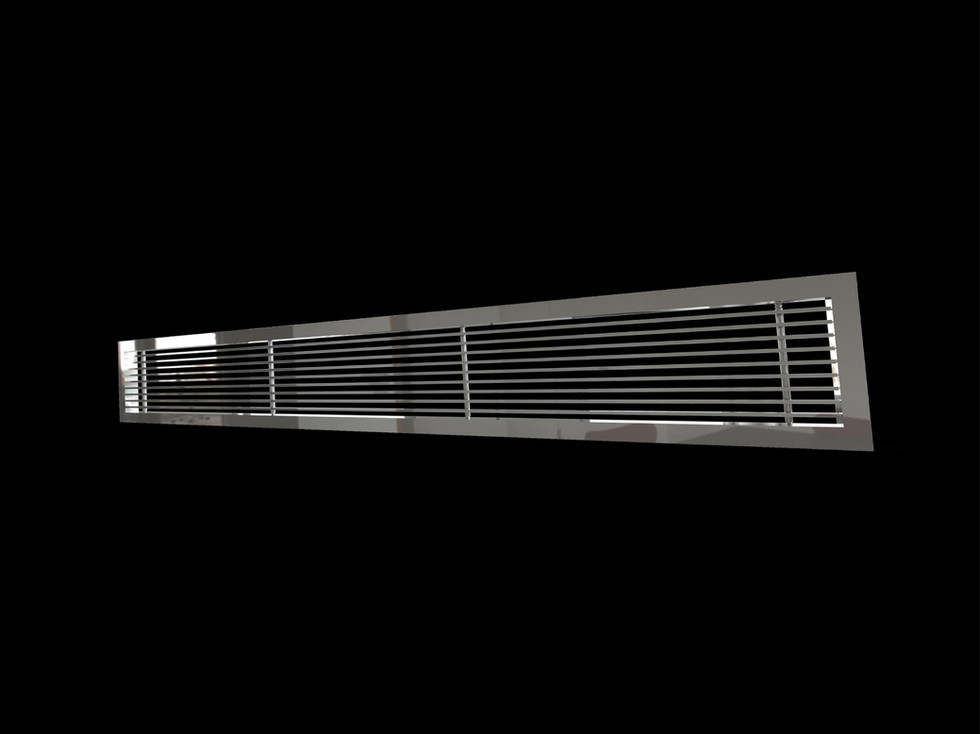

SSLD: Stainless Steel Linear Bar Diffuser

Stainless steel linear bar diffusers are made of 304 or 316 stainless steel and are ideal for use in corrosion-resistant environments, such as air conditioning or exhaust system outlets. They are commonly found in public projects, corrosion-resistant factories, laboratories, kitchens, and restrooms. The product is tested according to ANSI/ASHRAE Standard 70-06 and boasts excellent airflow performance and a low noise rating (NC). Please contact us for all certifications and test reports.

Standard Construction

  • Nominal length: 100mm - 2500mm
  • Nominal Width: 50mm - 2500mm
  • Oversize: Multiple sections with aglinment pins
  • Material Thickness: 0.8 - 2 mm
  • Finish: Satin / Mirror / Powder Coating / etc.,

Options

  • Material Grade: SS 304 / SS 316
  • Flange: 12mm/16mm/19mm/25mm/32mm/50mm
  • Blade Deflection: 0°/15°/30°/30° Herringbone/45°
  • Core: Removable Core/Fixed
  • Accessories: Blank-off Plate/OBD/Perforated Plate/Filters/etc.,
  • Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,

How to order

  • Ex. 304 stainless steel sand surface - 0 degree leaf - 19mm edge - movable bladder - add black - surface count 1200*200
  • Code: SSLD/19/R/BP/1200*200/Satin304
  • Ex. 316 stainless steel mirror finish - 0-degree blade - 25mm rim - movable element - aluminum mesh reinforcement - faceplate 2500*300
  • Code: SSLD/25/R/AX/2500*300/Mirror316
0° Deflection
15° Deflection
30° Deflection
30° Two Way Deflection (人字叶)
45° Deflection
Mixed Deflection (Custom Definition)

BLADE DEFLECTION

Fixed Core (obstruction)
Removable Core (彈弓膽)

CORE

No additional accessories required
Blank-off Plate (+BP)
Insect Screen Mosquito Net (+IS)
Opposed Blade Damper (O.B.D.)
Perforated Plate (+PP)
Square to Round Adaptor (+SR)
Wired Mesh (+WM)

ACCESSORIES

Border Calculation Formula

    border Neck Tianhua left a roar Wind throat Neck height
    20mm B-30mm B-20mm B-25mm 20mm
    25mm B-42mm B-30mm B-35mm 20mm
    32mm B-56mm B-45mm B-50mm 32mm
    • B = Base Size (Meter)
    • Assuming a 20mm edge is chosen, the face value is 150mm.
    • Neck gauge = 120mm
    • Ceiling height = 130mm
    • Air vent hole = 125mm

    Edge trim and size formula (recommended for opening)

    • 16mm edge = meter length - 22mm = inner neck measurement (hole opening = meter length - 15mm)
    • 12mm edge = meter reading - 14mm = inner neck measurement (hole = meter reading - 10mm)
