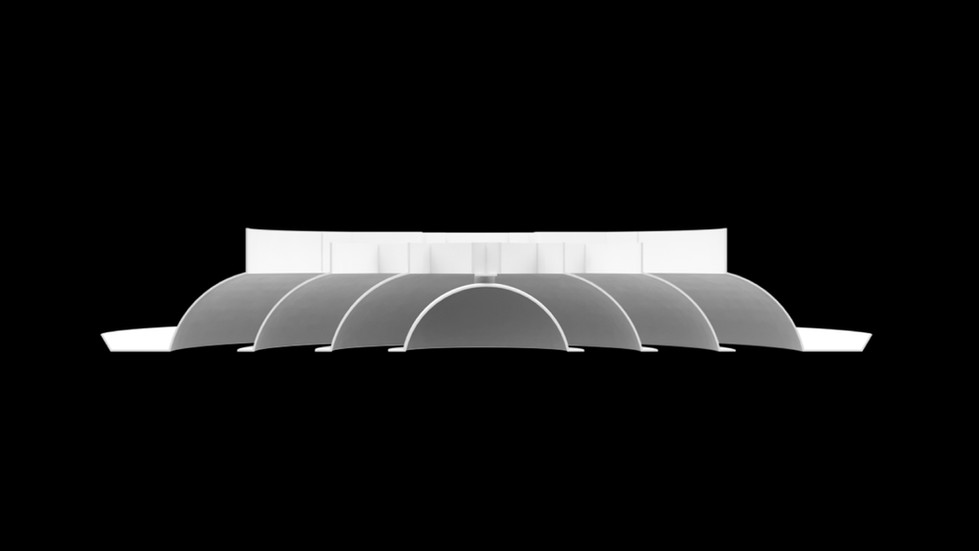

R2: Round Ceiling Diffuser Bowl Shape

Compared to the round disc-shaped nozzle (R1), the round ceramic bowl-shaped nozzle has a larger curvature of the blades, resulting in a more concentrated airflow. Structurally, it uses an X-shaped spring frame instead of the specially designed frame of the round disc shape, making removal and installation easier and more stable. For areas with significant temperature differences, it is recommended to spray with an Anti-Drop anti-sweat coating (Model No: NTR2 ).

Standard Construction

• Material: Extruded Aluminum
• Flange: 32 mm
• Finish: Enamel/Powder Coat/Mil Finish/etc.,
• Accessories: OBD/Plenum Box

Standard Size (Removable Core)

• Face measurement 300mm (neck 150mm) (ceiling clearance 240mm)
• Face measurement 350mm (neck 200mm) (ceiling clearance 280mm)
• Face measurement 380mm (neck 235mm) (ceiling clearance 320mm)
• Face measurement 400mm (neck 250mm) (ceiling clearance 340mm)
• Face measurement 450mm (neck 300mm) (ceiling clearance 395mm)
• Face measurement 500mm (neck 350mm) (ceiling clearance 440mm)
• Face measurement: 530mm (neck: 380mm) (ceiling clearance: 480mm)
• Front panel 600mm (neck 450mm) (ceiling panel 540mm)

How to order

• R2 Matte White - with OBD - 600mm Face Meter
• Code: R2+OBD/BASE/600mm/Matt White
