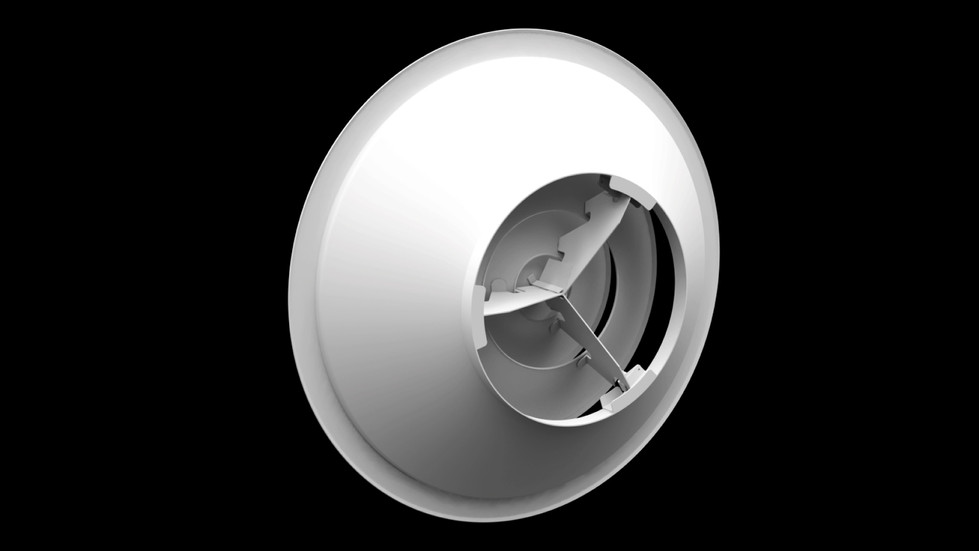

R1: Round Ceiling Diffuser Dish Shape

Round Ceiling Diffuser Dish Shape - Made of stamped aluminum and manufactured according to ASHRAE 70-2006 standards, this is a common round air outlet in the local market, providing both aesthetically pleasing and practical airflow distribution in electromechanical comfort spaces. It features a removable spring-loaded inner liner for easy maintenance, and an airflow control valve (OBD) can also be fitted to the back.

• Color customizable (standard matte white powder coating)
• Can connect to hoses of different sizes
• It can be equipped with an airflow regulating valve (Opposed Blade Damper)
• Optional anti-sweat velvet coating (NTR1)

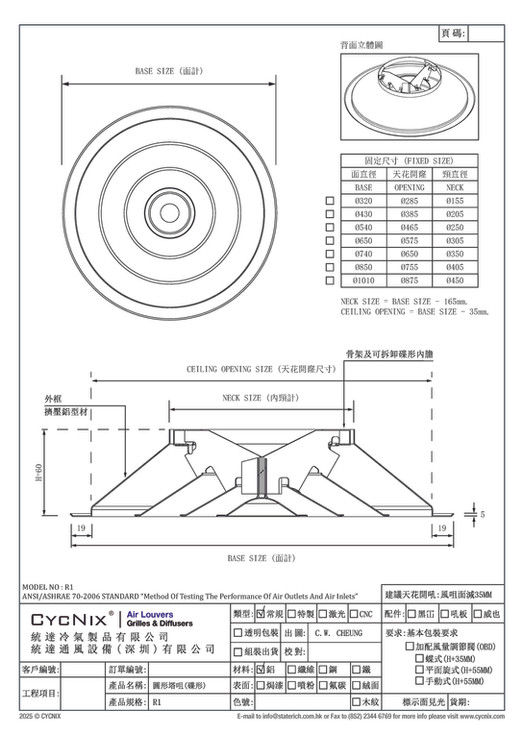

STANDARD SIZE (REMOVABLE CORE)

• Face measurement 320mm (neck 155mm) (ceiling clearance 285mm)
• Face measurement: 430mm (neck: 205mm) (ceiling height: 385mm)
• Face measurement: 540mm (neck: 250mm) (ceiling clearance: 465mm)
• Face measurement 650mm (neck 305mm) (ceiling clearance 575mm)
• Front panel 740mm (neck 350mm) (ceiling panel 650mm)
• Face measurement 850mm (neck 405mm) (ceiling clearance 755mm)
• Face measurement 1010mm (neck 450mm) (ceiling clearance 875mm)
