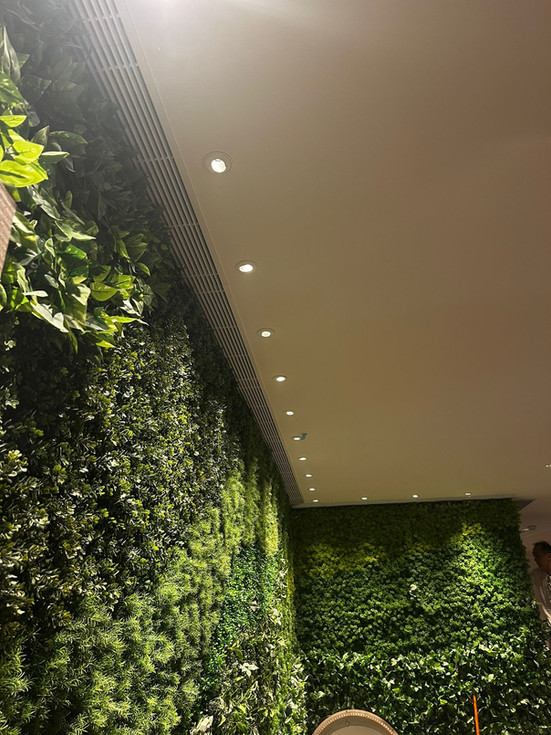

ALD-OM: Omega™ Linear Bar Diffuser

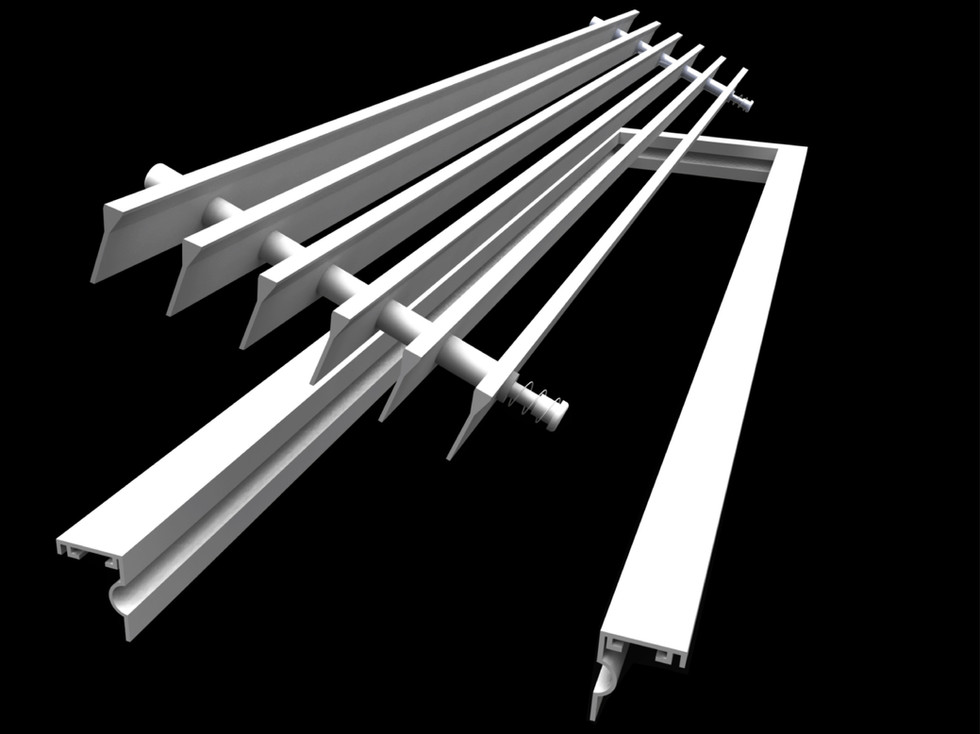

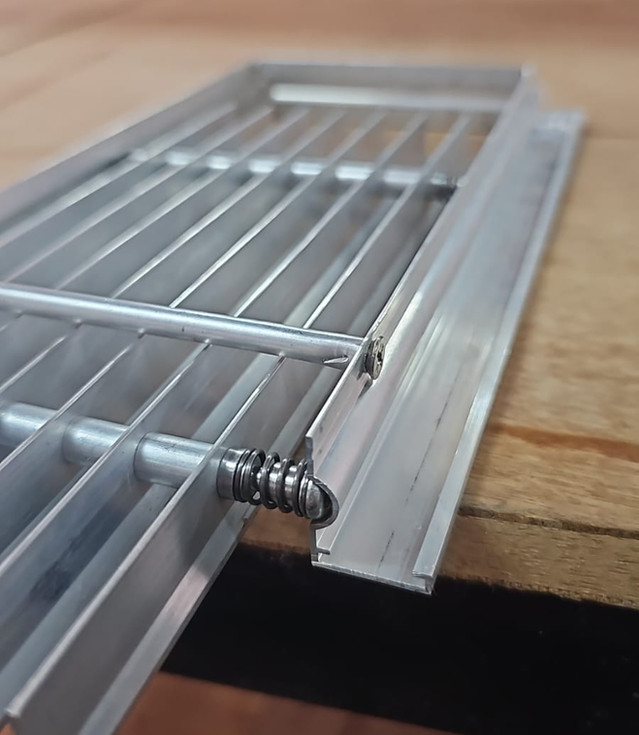

The Omega™ Linear Bar Diffuser is an improved version of the traditional linear diffuser frame, featuring a grooved outer frame that is visually identical to a traditional diffuser. Installation and removal no longer require a direct connection; simply use a spring to install/remove the inner tank. This saves time compared to traditional installation methods and eliminates concerns about scratching the surface coating during removal. The price is the same as traditional linear diffusers. The product is tested according to ANSI/ASHRAE Standard 70-06, demonstrating excellent airflow performance and a low noise level (NC). Please contact us for all certifications and test reports.
Standard Construction
- Material: Extruded Aluminum
- Nominal length: 100mm - 2500mm
- Nominal Width: 50mm - 2500mm
- Oversize: Multiple sections with aglinment pins
- Curve/Mitered Corner/Trapezium construction also available
- Finish: Enamel Paint/Powder Coat/Mil Finish/PVDF/Woodgrains/etc.,
Options
- Flange: 19mm/25mm/32mm/Frameless (Model: AFLD-OM)
- Blade Deflection: 0°/15°/30°/30° Herringbone/45°
- Core: Removable Core/Fixed
- Accessories: Blank-off Plate/OBD/Perforated Plate/Filters/etc.,
- Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,
How to order
- Omega™ matte white 0 degree leaf - 19mm edge - movable bladder - blackened - surface area 1200*200
- Code: ALD-OM/19/R/BP/BASE/1200*200/Matt White
- Omega™ color-matching 30-degree blade - 25mm edge - movable tube - aluminum mesh reinforcement - internal dimensions 500*300
- Code: ALB1-OM/25/R/AX/NECK/500*300/RAL9001
Border Calculation Formula
- B = Base Size (Meter)
- Assuming a 20mm edge is chosen, the face value is 150mm.
- Neck gauge = 120mm
- Ceiling height = 130mm
- Air vent hole = 125mm
- 16mm edge = meter length - 22mm = inner neck measurement (hole opening = meter length - 15mm)
- 12mm edge = meter reading - 14mm = inner neck measurement (hole = meter reading - 10mm)
| border | Neck | Tianhua left a roar | Wind throat | Neck height |
| 20mm | B-30mm | B-20mm | B-25mm | 20mm |
| 25mm | B-42mm | B-30mm | B-35mm | 20mm |
| 32mm | B-56mm | B-45mm | B-50mm | 32mm |
Edge trim and size formula (recommended for opening)
Other borders/methods
- For borderless styles, please refer to: AFLD series
- T-shaped ceiling (T-shaped ceiling is a style with an internal ceiling)
- Please refer to the ASBLD or ASBSE series for door hinge styles.
Frequently Asked Questions
Q: With a 20mm frame and a 150mm vent surface, how many holes should be left in the ceiling?
A: Subtract 26mm from the inner neck (124mm), so a 130mm opening should be left.
(6mm is the thickness reserved for blackening and connecting the bellows material)
