NTZ: Anti-Drop™ Linear Slot Diffuser

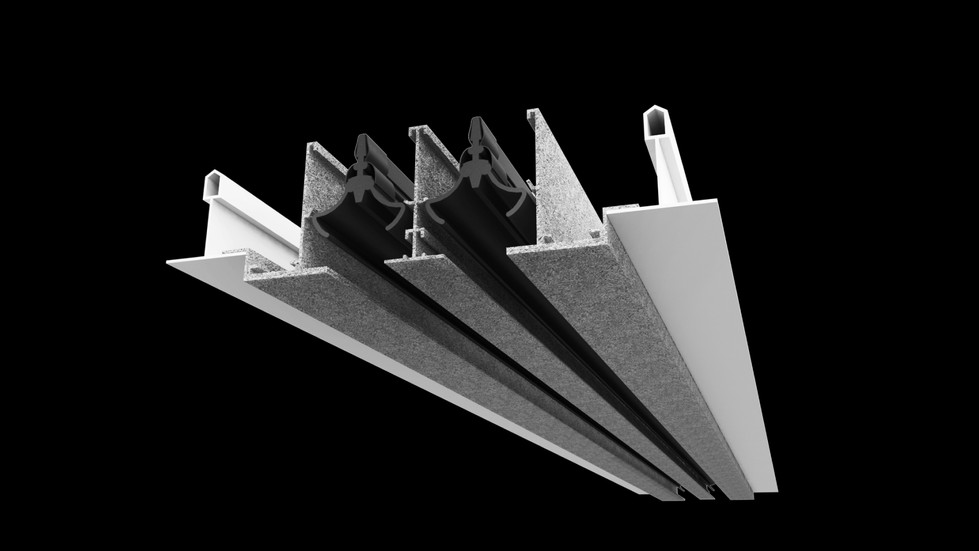

The Anti-Drop™ Linear Slot Diffuser is a linear slot diffuser designed for architectural applications requiring continuous length without compromising air distribution performance. These linear slot diffusers feature a fully adjustable aerodynamic pattern controller, are constructed from extruded aluminum, and are available in a variety of frame styles. The NTZ series of slot diffusers offers the ideal combination of superior engineering performance and architectural appeal.

Standard Construction

• Material: Extruded Aluminum
• Nominal length: 100mm - 2500mm
• Nominal Width: Neck 40mm - Neck 353mm
• Oversize: Multiple sections with aglinment pins
• Curve/Mitered Corner/Trapezium construction also available
• Finish: Anti-Drop™ Coated (Limited Color)
• Accessories: Blank-off Plate/Perforated Plate

Standard Construction

Fixed size (19mm Slot Width groove)

• 1 inch = 76mm (neck 40mm)
• 2-inch diameter = 114mm (neck 78mm)
• 3-inch diameter = 152mm (neck 116mm)
• 4-inch diameter = 190mm faceplate (154mm neckplate)
• 5-inch diameter = 228mm (neck 192mm)
• 6-inch diameter = 266mm (neck 230mm)
• 7-inch diameter = 304mm (neck 268mm)
• 8-inch diameter = 342mm (neck 306mm)

Fixed size (25mm Slot Width groove)

• 1 groove = 82mm for the face (45mm for the neck)
• 2-inch diameter = 126mm (neck 89mm)
• 3-hole design = Faceplate 170mm (Neck 133mm)
• 4-inch diameter = 214mm (neck 177mm)
• 5-inch diameter = 258mm (neck 221mm)
• 6-inch diameter = 302mm (neck 265mm)
• 7-inch diameter = 346mm (neck 309mm)
• 8-well = Faceplate 390mm (Neck 353mm)

How to order

• NTZ white 3 pits*19MM pits - plus black - surface area 1200*152
• Code: NTZ3/19SW/+BP/BASE/1200*152/White
