NTSE: Anti-Drop™ Single Deflection Grille

The Anti-Drop™ Single Deflection Grille (velour single blade) comes with a standard or separate airflow control valve (OBD). The one-way blades can be adjusted independently to control the airflow direction, while the airflow control valve provides airflow volume control. NTSE is ideal for commercial, residential, restaurant, and parking lot environments, and is particularly effective in areas with high temperature differences.

If a single-leaf appearance is required and the inner liner needs to be removed, customers can choose the hinged design (NTSBSE).

Material

• Extruded aluminum alloy profiles as the base material
• Anti-Drop™ Coating (BS476 Class 0)

Rectangular structure (leaf arrangement)

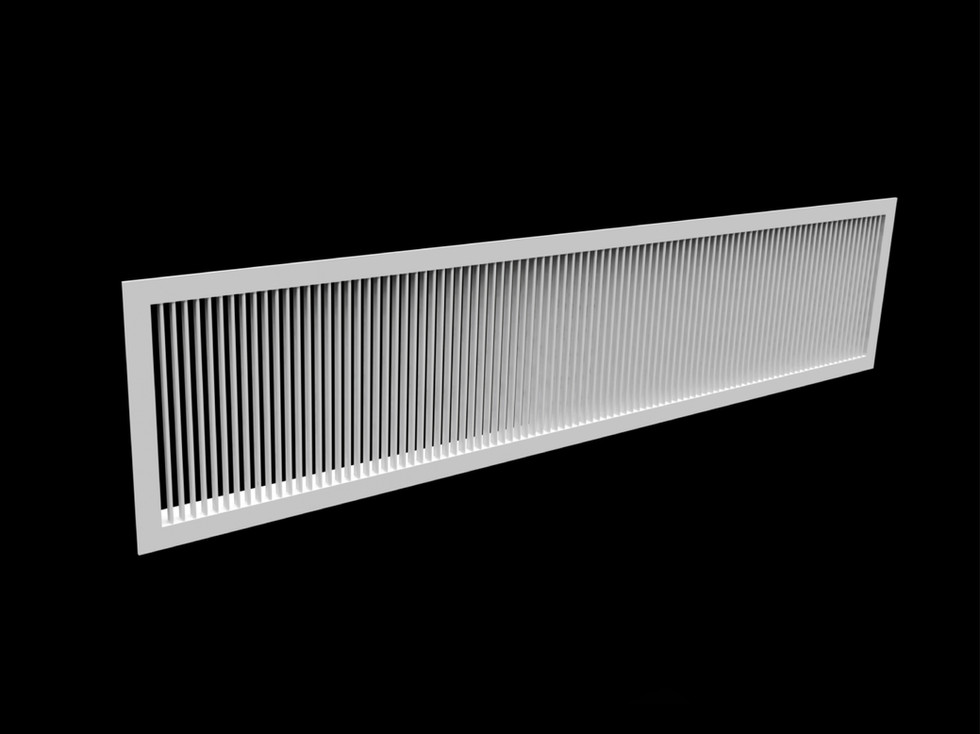

• Short-leaved (Fig. 2: STANDARD, VERTICAL)

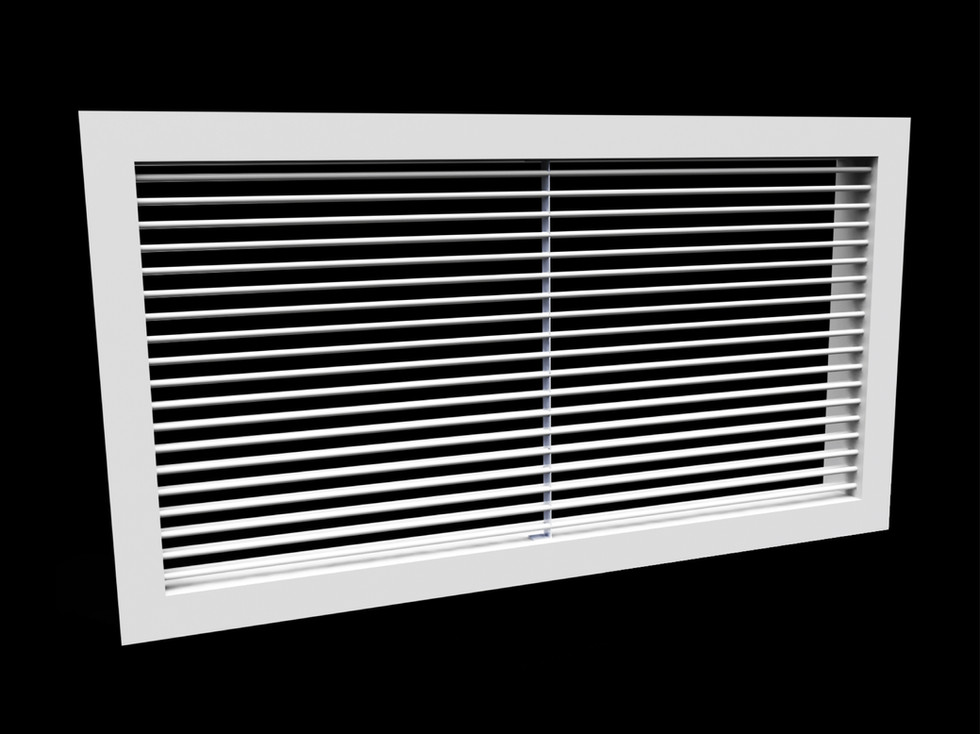

• Long-leaved (Fig. 1: NON-STANDARD, HORIZONTAL)

Accessories

• Air volume control valve (OBD)
• Plenum Box (Insulated Air Box)
• NTT SBSE (Narrow-Loop Sealant)

Color/Coating

• The standard is a matte white or matte black anti-sweat coating.
• If other colors are required, please provide a color swatch.

Single blade vs. linear air nozzle

• Single-blade - Each blade independently adjusts the wind direction and angle. Once installed on the ceiling/wall, it cannot be removed. If removal is required, please refer to the ASBSE model.
• Linear nozzles - the angle of each blade cannot be adjusted, and the inner liner can still be removed even when installed on the ceiling/wall. This is a strong difference between single-blade and linear nozzles.
