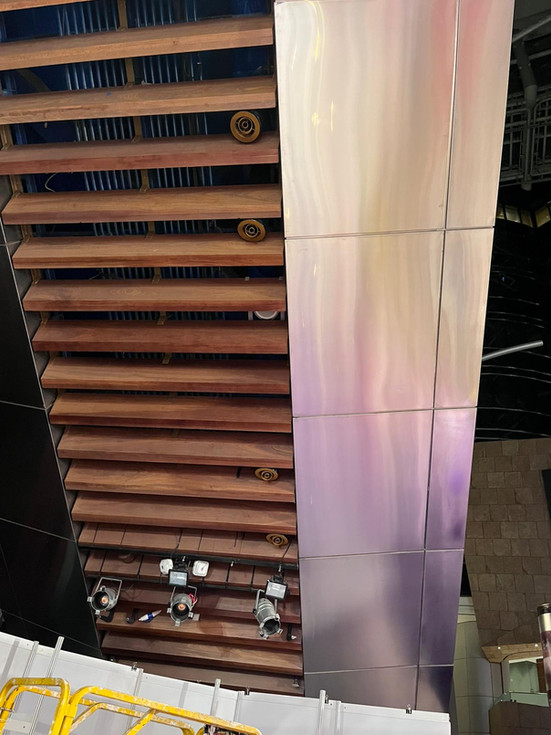

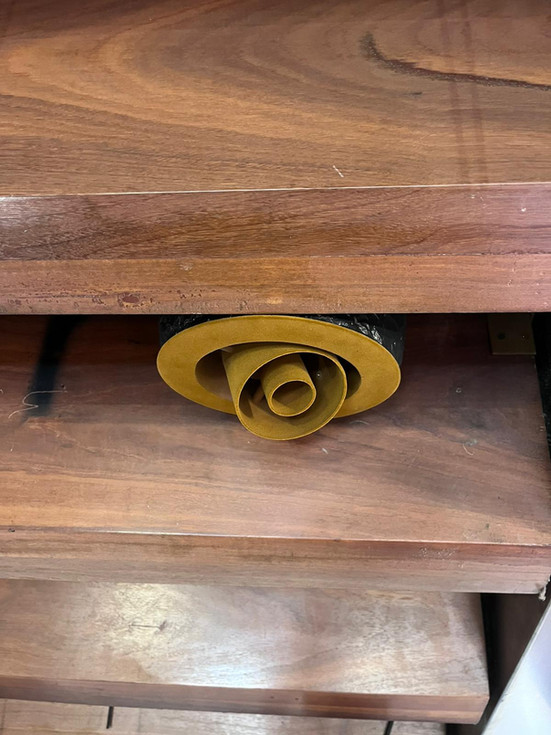

NTRJ: Anti-Drop™ Ring Jet Nozzle

The Anti-Drop™ Jet Nozzle , available in various sizes and core types, is ideal for architectural applications requiring long-distance spraying. The deep concentric deflection ring in each supply nozzle assembly is adjustable to provide horizontal or vertical control within a 60° arc. This versatile nozzle diffuser is well-suited for new or renovated buildings and can be used in supply or return/exhaust applications in ceilings, sidewalls, or direct ductwork.

Standard Construction

  • Material Thickness: 1.2 mm Extruded Aluminum

  • Test Evidence: ASHRAE 70-2006 STANDARD "METHOD OF TESTING FOR RATING THE PERFORMANCE OF AIR OUTLETS AND INLETS."

  • Throw: Min. 20Ft. to Max. 210 Ft.

  • Throw Angle: ±60°

  • Finish: Enamel Paint/Powder Coat/Woodgrains/etc.,

Construction Options

  • Flange: 20/25/32mm or Tailor-Made

  • Core: Flat Ring (FR - Flat) / Protrude (PT - Protruding Center Circle) / Gradient (GD - Gradient Per Layer)

  • Accessories: OBD/Perforated Plate/etc.,

  • Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,

How to order

  • Aluminum ring nozzle - matte white - 25mm edge - flat - inner diameter - 195mm
  • Code: RJ/25/FR/NECK/DIA.195/Matt White
150 mm (6)
200 mm (8")
250 mm (10")
300 mm (12")
350 mm (14")
400 mm (16)
450 mm (18")

NECK SIZE

unnecessary
Opposed Blade Damper (O.B.D.)

ACCESSORIES
