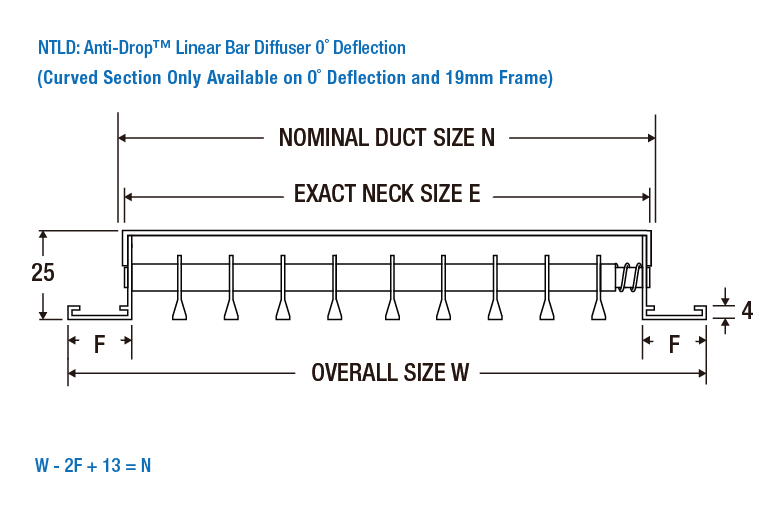

NTLD: Anti-Drop™ Linear Bar Diffuser
The Anti-Drop™ Linear Bar Diffuser is a linear nozzle made by electrostatically adsorbing a patented CLASS 0 fire-retardant fiber velvet onto the surface of extruded aluminum profiles. Compared to the ELD series (fiber velvet nozzles) , it offers better drip-proof performance and outperforms in environments with significant temperature differences. Customers can replace this nozzle with their existing one at a 1:1 size without additional modifications. The product is tested according to ANSI/ASHRAE Standard 70-06 and has excellent airflow performance and a low noise level (NC). Please contact us for all certifications and test reports.
Standard Construction
- Nominal length: 100mm - 2500mm
- Nominal Width: 50mm - 2500mm
- Oversize: Multiple sections with aglinment pins
- Curve construction also available
- Finish: Anti-Drop™ Coated
Options
- Flange: 19mm/25mm/32mm/Frameless (Model: NTFLD-OM)
- Blade Deflection: 0°/15°/30°/30° Herringbone/45°
- Core: Removable Core/Fixed/Hinged
- Accessories: Blank-off Plate/OBD/Perforated Plate/Filters/etc.,
- Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,
How to order
- Anti-Drop™ matte white 0 degree leaf - 19mm edge - movable bladder - blackened - surface area 1200*200
- Code: NTLD/19/R/BP/1200*200/Matt White
- Anti-Drop™ color-matching 30-degree blade - 25mm edge - movable bladder - aluminum mesh reinforcement - 2500*300 mm faceplate
- Code: NTLB1/25/R/AX/2500*300/RAL9001
Border Calculation Formula
- B = Base Size (Meter)
- Assuming a 20mm edge is chosen, the face value is 150mm.
- Neck gauge = 120mm
- Ceiling height = 130mm
- Air vent hole = 125mm
- 16mm edge = meter length - 22mm = inner neck measurement (hole opening = meter length - 15mm)
- 12mm edge = meter reading - 14mm = inner neck measurement (hole = meter reading - 10mm)
| border | Neck | Tianhua left a roar | Wind throat | Neck height |
| 20mm | B-30mm | B-20mm | B-25mm | 20mm |
| 25mm | B-42mm | B-30mm | B-35mm | 20mm |
| 32mm | B-56mm | B-45mm | B-50mm | 32mm |
Edge trim and size formula (recommended for opening)
Other borders/methods
- For borderless styles, please refer to: NTFLD series
- T-shaped ceiling (T-shaped ceiling is a style with an internal ceiling)
- For hinge styles, please refer to the NTSBLD or NTSBSE series.
Frequently Asked Questions
Q: With a 20mm frame and a 150mm vent surface, how many holes should be left in the ceiling?
A: Subtract 26mm from the inner neck (124mm), so a 130mm opening should be left.
(6mm is the thickness reserved for blackening and connecting the bellows material)
