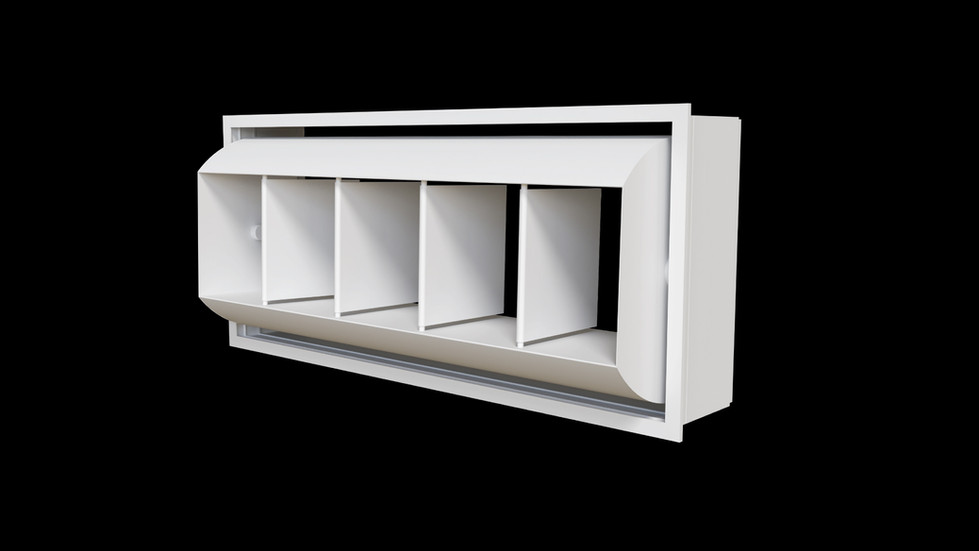

NTDL-D: Anti-Drop™ Drum Louvers

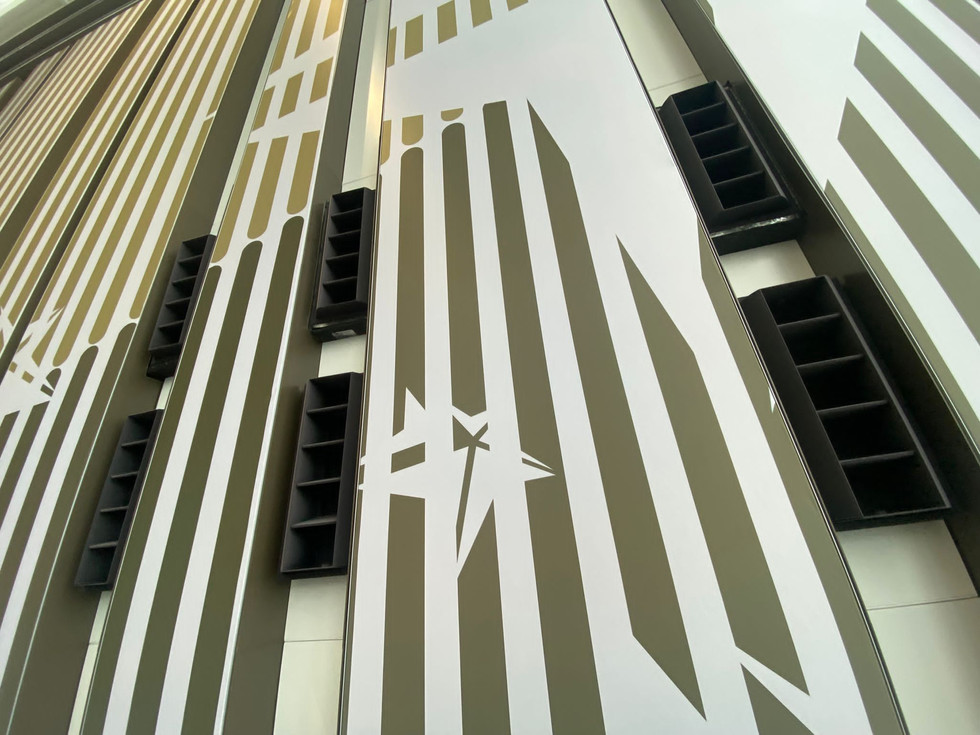

Anti-Drop™ Drum Louvers are characterized by their robust construction that delivers long-distance airflow. They consist of extruded aluminum blades within a rotating drum, which control the direction of airflow and reduce noise. They are commonly found in airports, high-speed rail stations, and large air outlets.

Features

• Used to handle large air volume requirements and long-distance spraying
• Suitable for installation in larger spaces
• The horizontal and vertical airflow direction can be adjusted by rotating the drum and pivot blades.
• A felt seal is used between the roller and the frame to prevent leakage and securely fix the roller in the selected position.
• Can operate under high wind speeds
• It can be equipped with an air volume regulating valve (OBD).
• BS476 PART 6 & 7 CLASS 0 Velvet Nylon Coating

shape

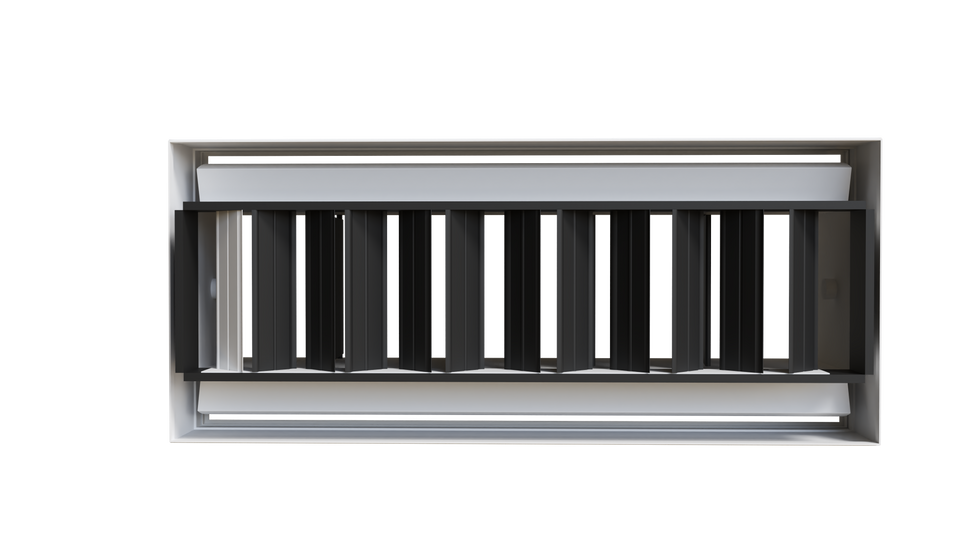

• Figure 1: Adjustable vertical blades
• Figure 2: Adjustable separating blades

Size limitations (neck gauge)

• The minimum size is 625 x 150 mm.
• The maximum size is 1520 x 380 mm.
