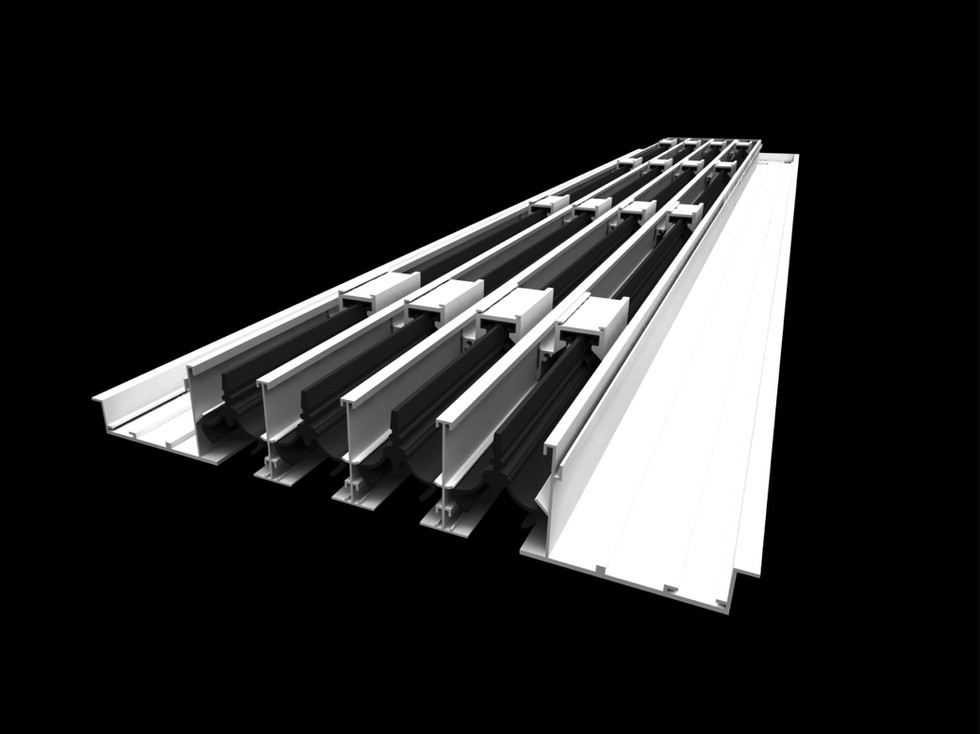

AZ-T: Lay-In Ceiling Linear Slot Diffuser

The Lay-In Ceiling Linear Slot Diffuser is part of the Crab Claw series. Unlike ordinary Crab Claws, its outer frame is made of an extruded aluminum profile and is specifically used in exposed tiered ceiling designs.

Fixed size

  • 1 pit = 154mm face (48mm neck)
  • 2 vents = 192mm front (86mm neck)
  • 3-slot = 230mm front (124mm neck)
  • 4-inch diameter = 268mm front (162mm neck)
  • 5-inch diameter = 306mm front (200mm neck)
  • 6-inch diameter = 344mm face (238mm neck)
[1 pit] - 154 (W) x 1200 (L) mm
[2 pits] - 192 (W) x 1200 (L) mm
[3 pits] - 230 (W) x 1200 (L) mm
[4 pits] - 268 (W) x 1200 (L) mm
[5 pits] - 306 (W) x 1200 (L) mm
[6 pits] - 344 (W) x 1200 (L) mm

BASE SIZE
