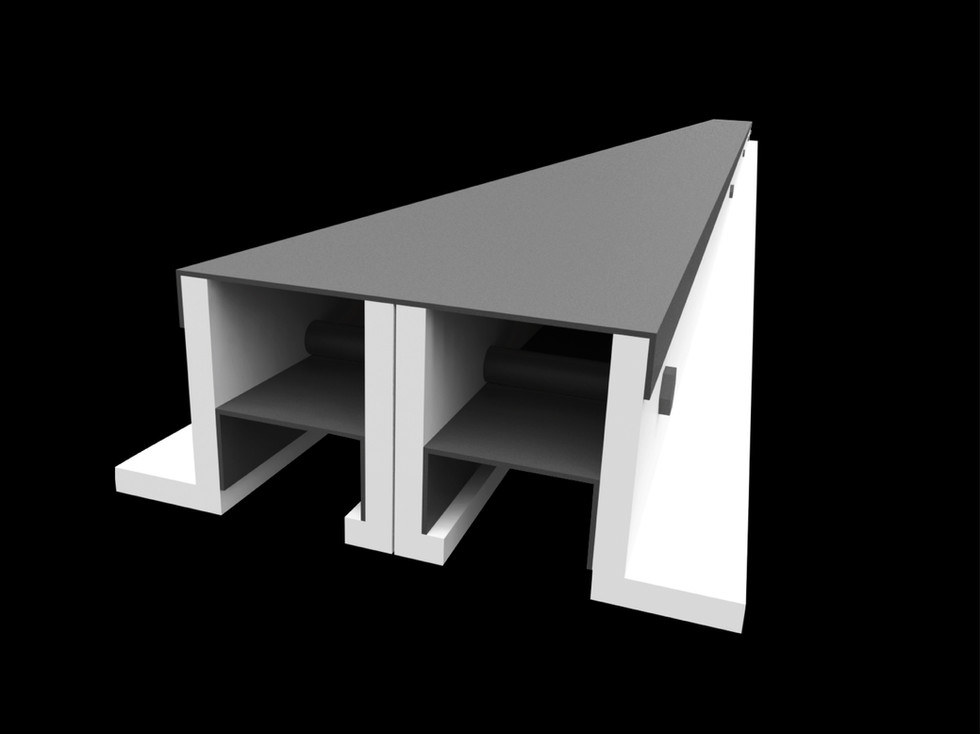

EZ: Fiberwood™ Linear Slot Diffuser

Fiberwood™ Linear Slot Diffuser (fiber crab claw nozzle) is made of a twist-resistant CLASS 0 level fiber composite. It is used to replace the traditional metal crab claw nozzle in appearance and function. It abandons the metal air guide blades and is equipped with a roaring plate to avoid excessive concentration of air distribution and reduce the formation of condensation water. Its advantage is that it has a lower thermal conductivity. The styles are available from 1 to 8 pits, depending on the design air volume. Generally, the 2-pit style can have an air volume of 70 l/s (250 m^3/h) per meter and a noise of 30 dB(A).

Standard Construction

• Material: Extruded Fiberwood 6mm thickness
• Nominal length: 100mm - 2500mm
• Nominal Width: Neck 33mm - Neck 39mm
• Oversize: Multiple sections with aglinment pins
• Curve/Mitered Corner/Trapezium construction also available
• Finish: Enamel Paint/Powder Coat/Mil Finish/etc.,
• Accessories: Blank-off Plate/Perforated Plate/Plenum

Standard Size (19mm Slot Width)

• 1 groove = 83mm for the face (33mm for the neck)
• 2-inch diameter = 122mm (neck 72mm)
• 3-inch diameter = 161mm (neck 111mm)
• 4-hole = Faceplate 200mm (Neck 150mm)
• 5-inch diameter = 239mm (neck 189mm)
• 6-inch = Faceplate 278mm (Neck 228mm)
• 7-inch diameter = 317mm (neck 267mm)
• 8-inch = Faceplate 356mm (Neck 306mm)

Standard Size (25mm Slot Width)

• 1 inch = 89mm (neck 39mm)
• 2-inch diameter = 134mm (neck 84mm)
• 3-inch diameter = 179mm (neck 129mm)
• 4-inch diameter = 224mm (neck 174mm)
• 5-inch diameter = Faceplate 269mm (Neck 219mm)
• 6-inch diameter = 314mm (neck 264mm)
• 7-inch diameter = 359mm (neck 309mm)
• 8-inch diameter = 404mm (neck 354mm)

How to order

• EZ matte white 3 pits*19MM pits - plus black - surface area 1200*161
• Code: EZ3/19SW/+BP/BASE/1200*161/Matt White
