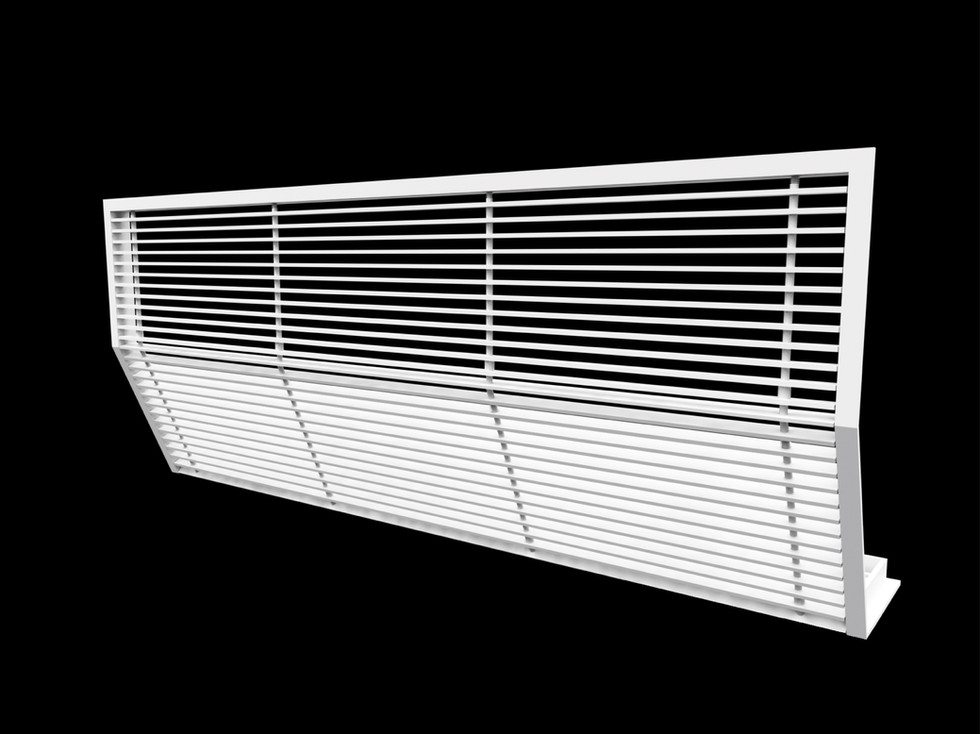

ETDX: Fiberwood™ Trihedron Diffuser

Fiberwood Trihedron Diffuser (Three-sided L-shaped nozzle) is a special model extended by ETD. This L-shaped nozzle for home split air conditioners is made of extruded fiber resin and is used to cover ceiling design projects such as indoor split air conditioners.

  • Color customizable
  • Outer or inner curves can also be manufactured (the border can only be 20mm paper edge).
  • The movable slingshot cartridge or hinged cartridge removal mechanism makes it easy for users to remove.
  • Fixed blade wind direction options: 0 degrees/15 degrees/30 degrees/45 degrees
  • It will not hinder routine maintenance.
  • Effectively reduce dripping.

Options

• Top/Front/Bottom blades: 0 degrees/15 degrees/30 degrees/45 degrees are selectable.

• Air nozzle frame options: 20mm/25mm/32mm.

· Styles for removing the inner tank: slingshot bracket/movable door hinge/㩒elastic hinge.

Curved designs are also available; please refer to product number: ECTD.

#Fiber L-shaped nozzle #L-shaped nozzle #L-shaped air outlet #Split air conditioner

The customer needs to provide the opening dimensions: length * width * depth.

Custom sizes are available.

The top, front, and bottom all require removal of the bladder.

Method of removing the gallbladder

20 mm Frame (20 sides)
25 mm Frame (25 sides)
32 mm Frame (32 sides)

FRAME

All 0 degrees

BLADE DEFLECTION
