ETD: Fiberwood™ Trisquare Diffuser

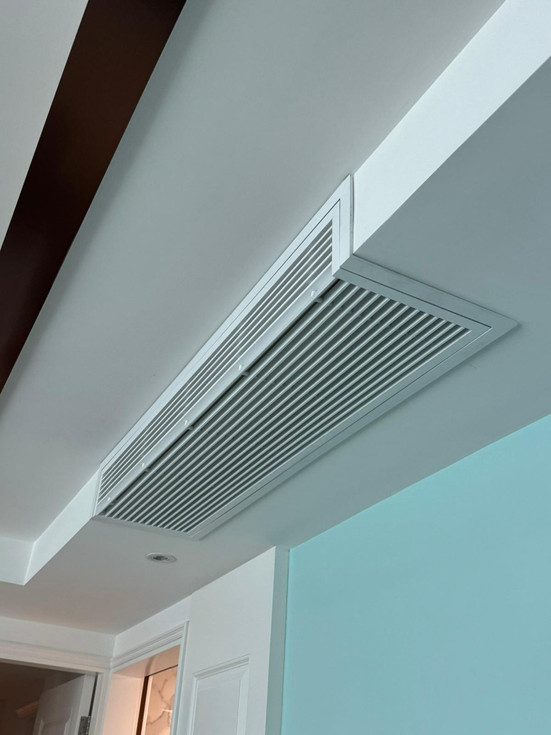

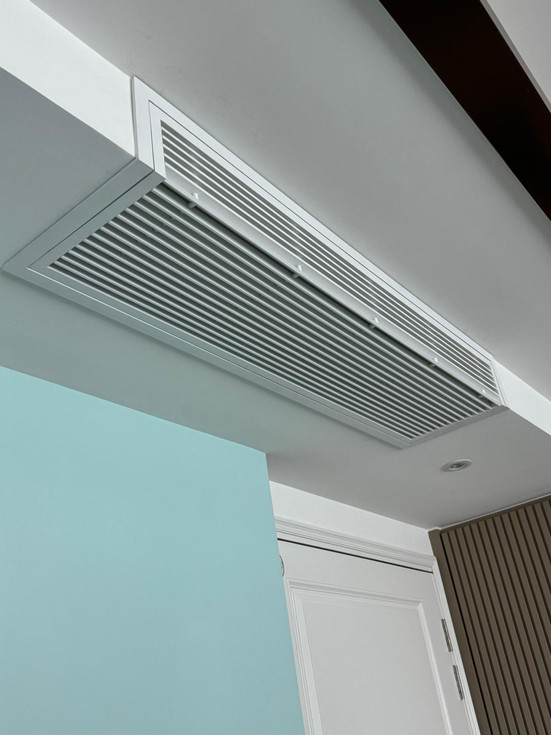

Fiberwood Trisquare Diffuser (Fiber L-shaped nozzle) is a type of nozzle that offers better thermal conductivity than traditional aluminum alloy nozzles. Using fiber materials effectively reduces maintenance costs while maintaining a constant temperature. This L-shaped nozzle for home split-type air conditioners is made of extruded fiber resin and is used in ceiling design projects such as concealing indoor split-type air conditioners.

  • Color customizable
  • Outer or inner curves can also be manufactured (the border can only be 20mm paper edge).
  • The movable slingshot cartridge or hinged cartridge removal mechanism makes it easy for users to remove.
  • Fixed blade wind direction options: 0 degrees/15 degrees/30 degrees/45 degrees
  • It will not hinder routine maintenance.
  • Effectively reduce dripping.

When choosing a tube removal system, ensure the depth is at least 30mm.

  • Figure 1: Standard 20mm frame, slingshot liner (before liner removal)
  • Figure 2: Standard 20mm frame, slingshot bladder (after bladder removal)
  • Figure 3: Standard 32mm frame, hinge inner liner (25mm frame, before liner removal)
  • 4: Standard 32mm frame, hinge inner liner (25mm frame, after liner removal)

Other options

• Front and bottom blades: 0 degrees/15 degrees/30 degrees/45 degrees.

• Air nozzle frame options: 20mm/25mm/32mm/borderless.

· Styles for removing the inner tank: slingshot bracket/movable door hinge/㩒elastic hinge.

Curved designs are also available; please refer to product number: ECTD.

#Fiber L-shaped nozzle #L-shaped nozzle #L-shaped air outlet #Split air conditioner

The customer needs to provide the opening dimensions: length * width * depth.

Custom sizes are available.

The bladder needs to be removed from both the front and bottom.
Removing the gallbladder from the front or bottom.
Frontal dissection of the gallbladder, bottom obstruction of the gallbladder.
Hinged type (the entire inner liner can be disassembled)
㩒Spring hinge (the entire inner liner can be disassembled)

Method of removing the gallbladder

Boundless
32 mm Frame (32 sides)
25 mm Frame (25 sides)
20 mm Frame (20 sides)

FRAME

30 degrees from the front, 0 degrees from the bottom
0 degrees to the front, 30 degrees to the bottom, blowing towards the face.

BLADE DEFLECTION
