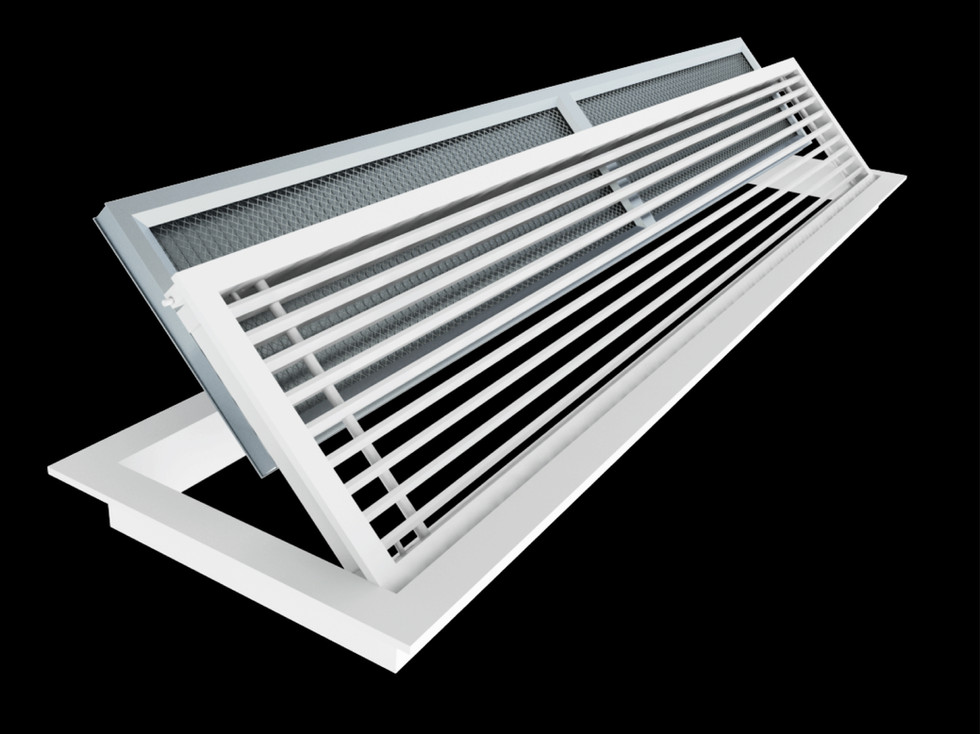

ESB: Fiberwood™ Hinged Return Air Louver with Filter

The Fiberwood™ Hinged Return Air Louver with Filter is primarily used for return air in fan coil systems. Equipped with a high-efficiency metal filter such as aluminum or stainless steel, it is suitable for any type of air vent in the local environment. The hinged design facilitates maintenance and repair, making it an economical and practical universal air vent.

  • Color is customizable (standard is matte white powder coating).
  • BS: 476 PART 6 & 7 CLASS 0 Fireproof Materials
  • Comes with a built-in filter (optional: aluminum dust filter/stainless steel dust filter/black nylon mesh, etc.)
  • The filter comes with an ANSI/ASHRAE Standard 52.2-2017 test certificate.
  • Suitable for various projects, commonly found in restaurants, offices, data centers, etc.

#FiberRevivalNetwork #FiberRevivalCypressLeaf #FiberRevivalCypressLeafDustNet #HingedTypeLouver #FiberwoodLouver

300 (W) x 1200 (L) mm
600 (W) x 1200 (L) mm
350 (W) x 1200 (L) mm
600 (W) x 600 (L) mm
595 (W) x 595 (L) mm
24" x 24"
Custom sizes are available.

BASE SIZE

0 Degree Deflection
30 Degree Deflection
30 Degree Deflection 2-Ways
45 Degree Deflection

BLADE DEFLECTION

No additional accessories required
Aluminum Air Filer 25mm thickness (1" thick)
Aluminum Air FIlter 20mm thickness (6 minutes thick)
Stainless Steel 304 Air Filter 20mm thickness
Stainless Steel 304 Air Filter 25mm thickness

ACCESSORIES

12 mm Frame (4 sides)
16 mm Frame (16 sides)
20 mm Frame (20 sides)
25 mm Frame (25 sides)
32 mm Frame (32 sides)

FRAME
