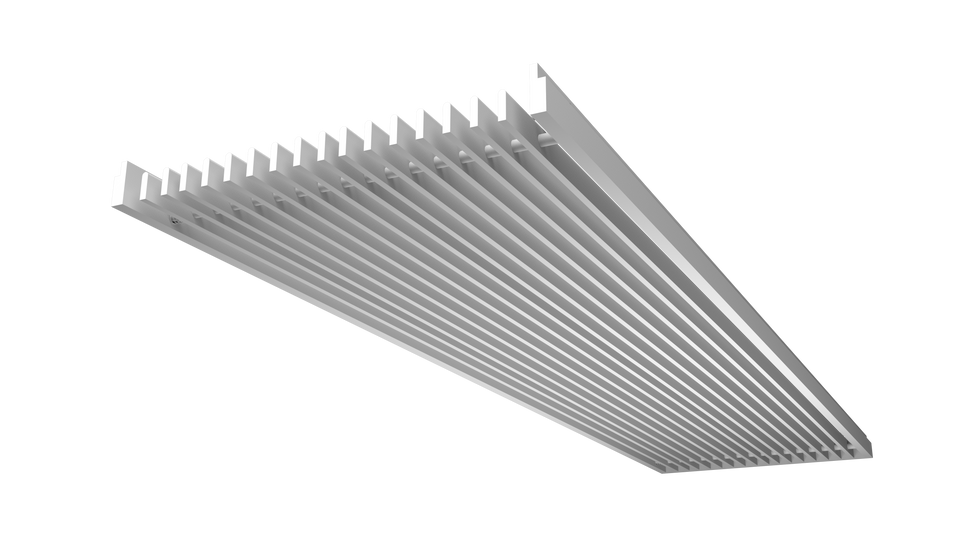

Fiberwood Frameless Linear Bar Diffuser

The Fiberwood™ Frameless Linear Bar Diffuser offers an excellent option for designers seeking the ultimate in linear design. The product is tested according to ANSI/ASHRAE Standard 70-06 and has obtained BS476-CLASS 0 fire resistance rating. Please contact us for all certifications and test reports.

Standard Construction

  • Material: 6mm Extruded Fiberwood
  • Nominal length: 100mm - 2500mm
  • Nominal Width: 50mm - 2500mm
  • Oversize: Multiple sections with aglinment pins
  • Curve/Mitered Corner/Trapezium construction also available
  • Finish: Enamel Paint/Powder Coat/Woodgrains/etc.,

Options

  • Flange: 8mm/10mm
  • Blade Deflection: 0°/30°/30°-2 Way/Customizable
  • Core: Removable Core/Fixed
  • Accessories: Blank-off Plate/OBD/Perforated Plate/Filters/etc.,
  • Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,

How to order

  • Ex. Fiber borderless matte white 0 degree leaves - active bladder - blackened - surface area 1200*200 (smallpox hole 202)
  • Code: ELD-F/R/BP/1200*200/Matt White
0° Deflection
30° Deflection
30° Two Way Deflection (人字叶)
Mixed Deflection (Custom Definition)

BLADE DEFLECTION

Fixed Core (obstruction)
Removable Core (彈弓膽)

CORE

6mm thick fiber without borders
12mm thick fiber without borders
20mm thick fiber without borders

FRAME

No additional accessories required
Blank-off Plate (+BP)
Insect Screen Mosquito Net (+IS)
Opposed Blade Damper (O.B.D.)
Perforated Plate (+PP)
Square to Round Adaptor (+SR)
Wired Mesh (+WM)

ACCESSORIES

Border Calculation Formula

    Dimensions for borderless frame (surface measurement + 2mm for opening size)

    • A 6mm thick frame means that if the opening is 150mm, the air vent should be ordered with a surface area of 148mm.
    • A 10mm thick frame = If the opening is 150mm, the air nozzle should be ordered with a surface area of 148mm.

Inner neck height / Total height

    High neck of the air blower

    • 6mm thick frame = Please allow a total depth of 35mm (neck height 29mm + material thickness 6mm)
    • 10mm thick frame = Please allow a total depth of 35mm (neck height 29mm + material thickness 6mm)
    • The thinnest of these can be made with a neck height of 25mm, but there is no hardening treatment on any part of it.

Additional processing

    Additional processing

    • Turn on the lights or configure a lights panel.
    • For other methods, please provide your design and we will customize.
