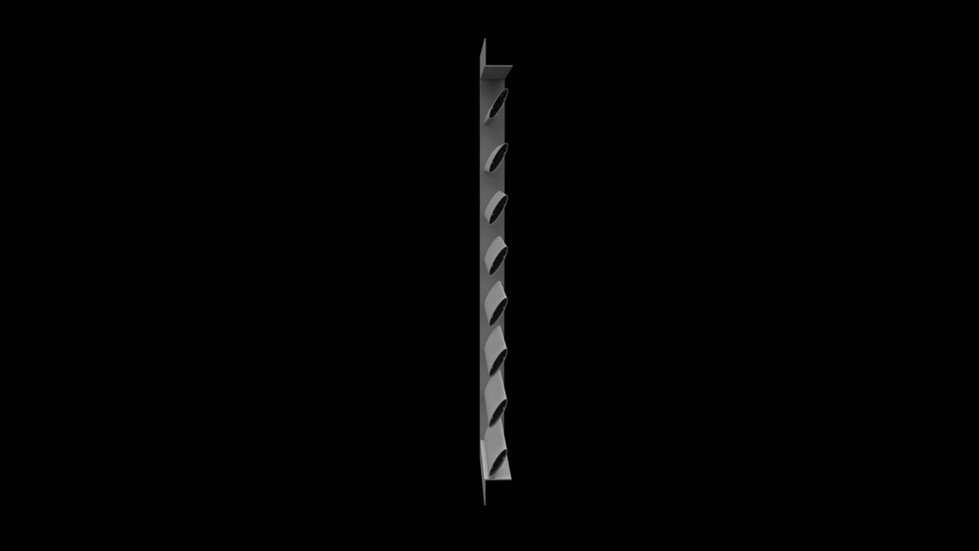

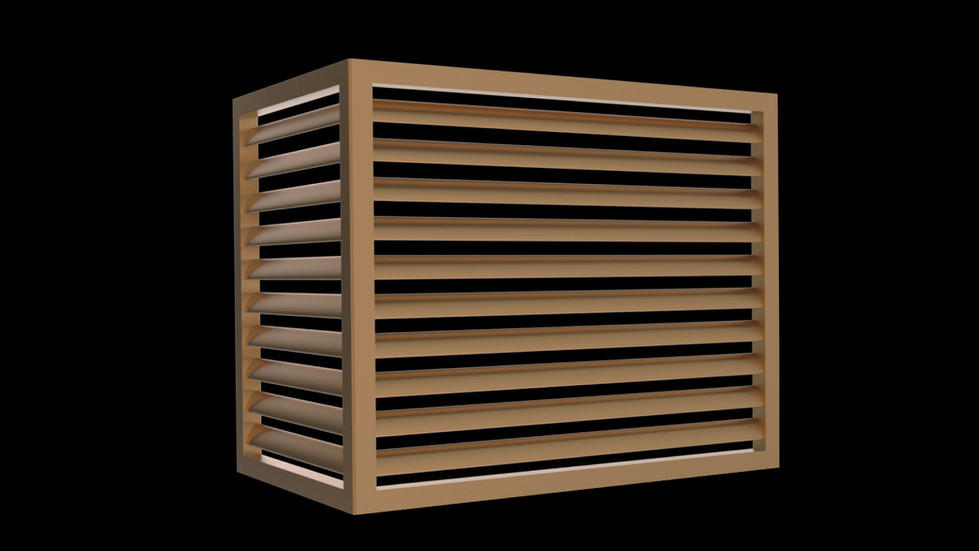

EL: External Louvre (Multiple Options)

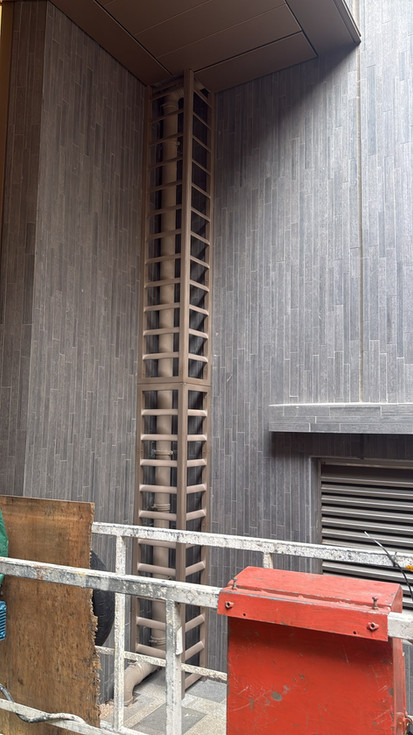

EL: External Louvre (Multiple Options) - 外牆柏葉，型號EL，設計用於住宅樓宇散熱空間應用，適用於外牆柏葉飾面裝飾、散熱機排風飾面。這款型號需要建築的設計圖紙，以便我們對應超過50種柏葉結構，柏葉款式由深度由25/50/100至200。材質為國標6063-T5擠壓鋁型材，以PVDF塗層處理，任何顏色均能訂製。柏葉型材的側面自帶螺絲孔，能應付任何突發改動以便現場砌割。



  • 材料為6063-T5劑壓鋁型材

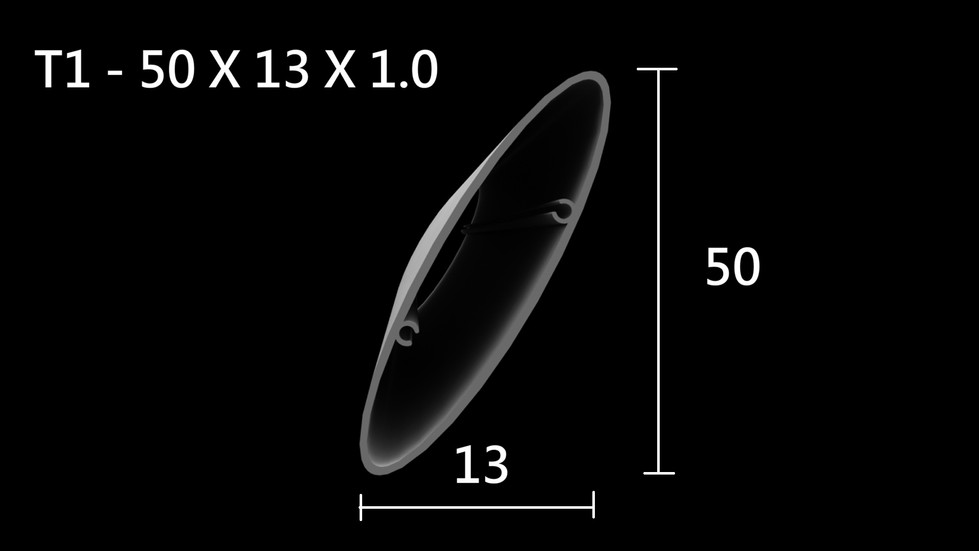

  • 葉片結構超過50種，歡迎查詢
  • 尺寸皆可自由定製
  • 柏葉皆為Single-Bank單層柏葉結構
  • Double-Bank結構及測試報告需與我們聯絡
  • 我們需要了解場地結構，盡可能提供設計草圖給我們
Custom sizes are available.

BASE SIZE

32 mm Frame (inch 2 sides)
25 mm Frame (1" side)
20 mm Frame (6-point side)
Other frame sizes (contact us)
Box Section
Flat Bar
Frameless
Mixed Frame (Square tube outer frame + U-shaped inner frame)
U-Frame

FRAME

PVDF (Fluorocarbon)
Powder Coated
Enamel Paint
Mild Finish (Aluminum Original Color)
Provide color swatch number
Woodgrains

FINISH

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
