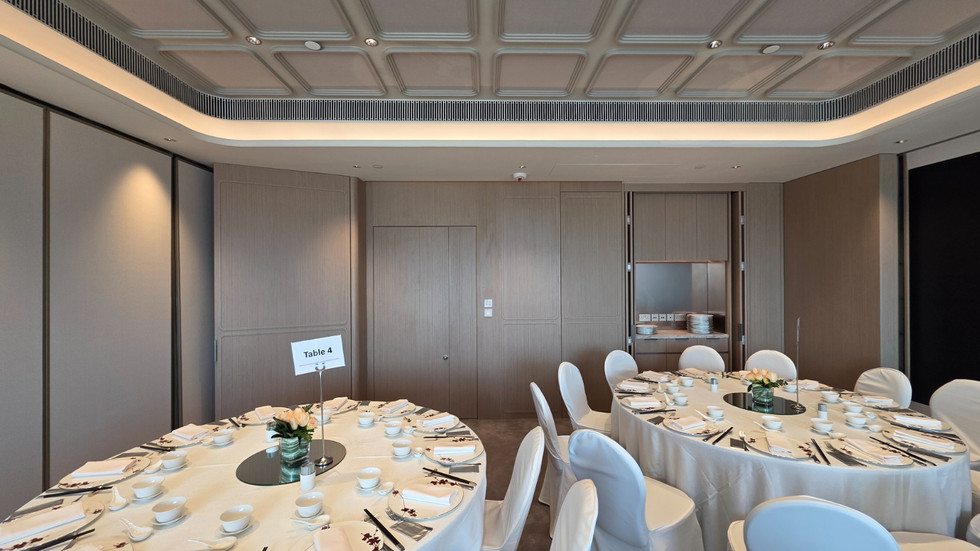

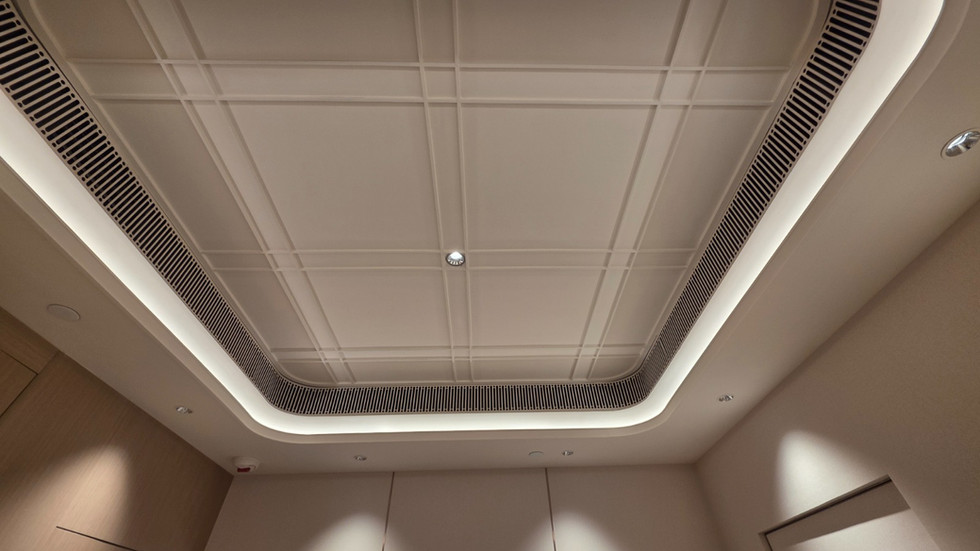

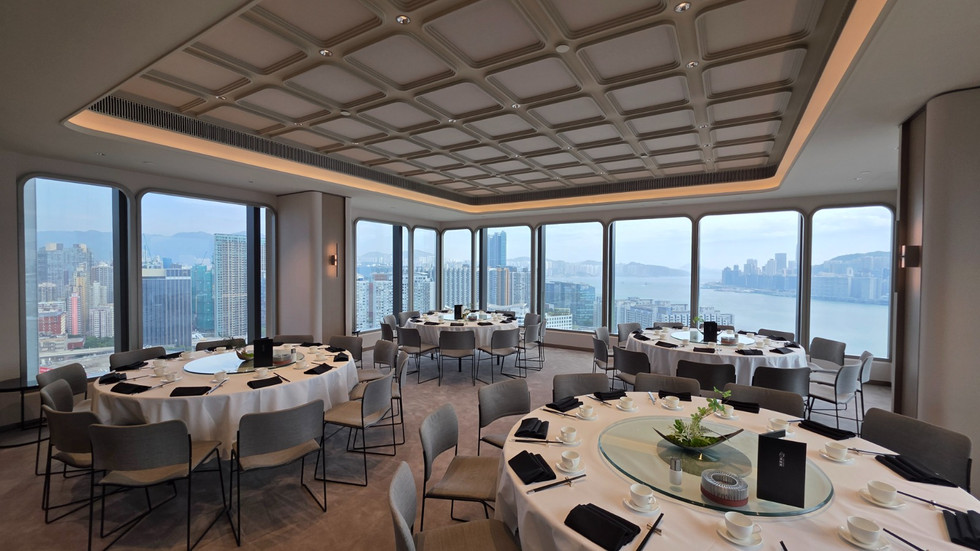

DTR-Z2: Artisan Decorative Grille

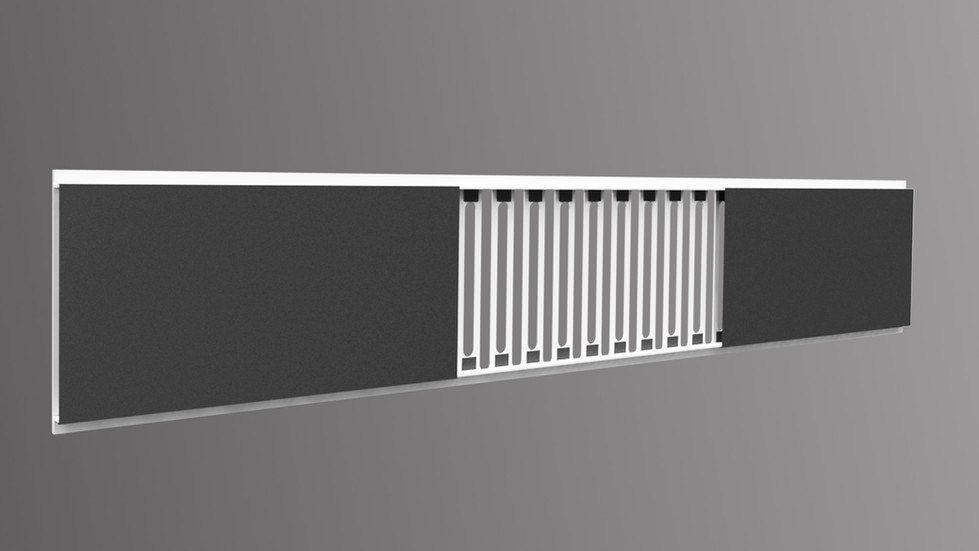

The Artisan Decorative Grille Z2 is an air vent with a customizable appearance, featuring a pill-shaped airflow pattern. The width and length can be designed according to customer requirements or provided designs, and materials such as aluminum alloy, ABS, and anti-sweat fiber are available.

  • Color customizable

  • The Free Area Ratio is determined by the diagram.

  • Customers can provide CAD files or concept drawings for us to revise.

  • Multiple frame options available (12/20/25/32MM frame).

  • The removable inner liner design makes maintenance and repair convenient.

  • The longest segment is 2.5 meters.

  • The shortest length must be no less than 100 mm.

  • Ceiling depth is limited by the depth of the frame (generally 20mm~50mm).

  • There is no data provided by the ASHRAE Standard for using finishes as a style.

Custom sizes are available.

BASE SIZE

12 mm Frame (4 sides)
16 mm Frame (5-point side)
20 mm Frame (6-point side)
25 mm Frame (1" side)
32 mm Frame (inch 2 sides)
Other frame sizes (contact us)
Frameless

FRAME

No additional accessories required
Blank-off Plate (+BP)
Insect Screen Mosquito Net (+IS)
Opposed Blade Damper (O.B.D.)
Perforated Plate (+PP)

ACCESSORIES
