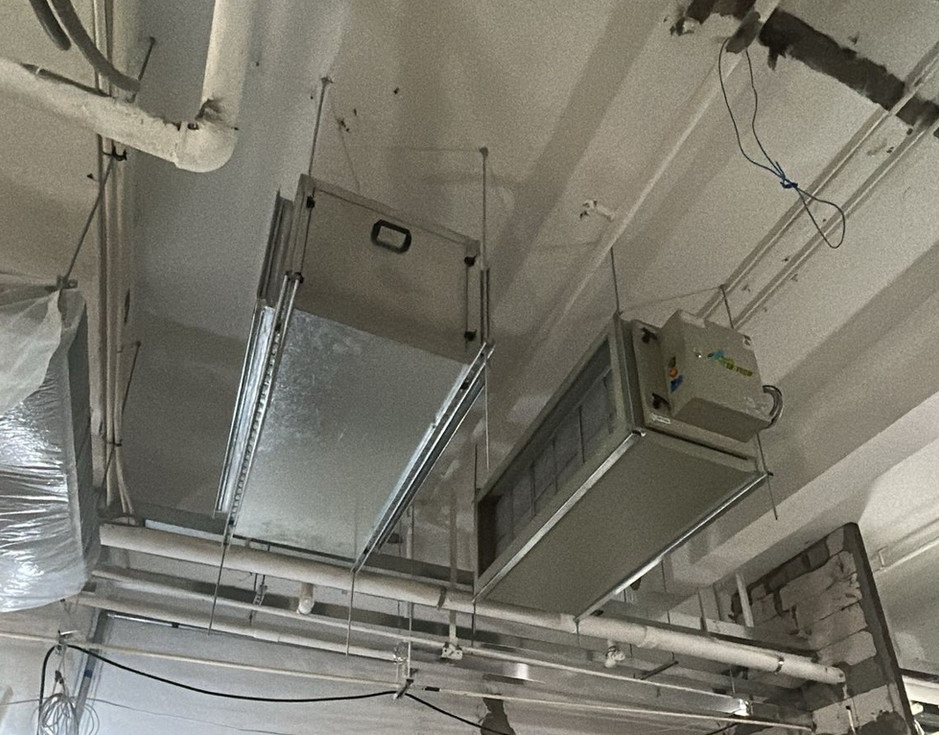

CXF: Activated Carbon Filter Box

CXF: Activated Carbon Filter Box is a common type of activated carbon filter box used in restaurants. The box features easily removable maintenance doors on both sides for convenient cleaning and routine maintenance. CYCNIX activated carbon filters come with an iodine value test report. The box can be customized to different airflow rates, with a required depth of 720mm. Suitable for commercial restaurant kitchens, it helps absorb moisture and deodorize. The activated carbon filter size is customizable from 20mm to 25mm.

Standard Construction

• Material: GI Steel or Stainless Steel 304/316
• Minimum Casing Size: W300 * H220 * D720 mm (Min. 425 CMH)
• Maximum Casing Size: W2400 * H1850 * D720 mm (Max. 40800 CMH)
• Standard Access Door on left & right side of the casing
• The quantity of filters is dependent on the air volume. (425~40800 CMH)

Before your order/How to order

• You need to provide the related air volume.
• Activated carbon mesh box - J2 flange - Length * Width * Height dimensions
• Code: CXF-J2-400*350*720 mm (1200 CMH)
