ASV-T: Air Transfer Grilles

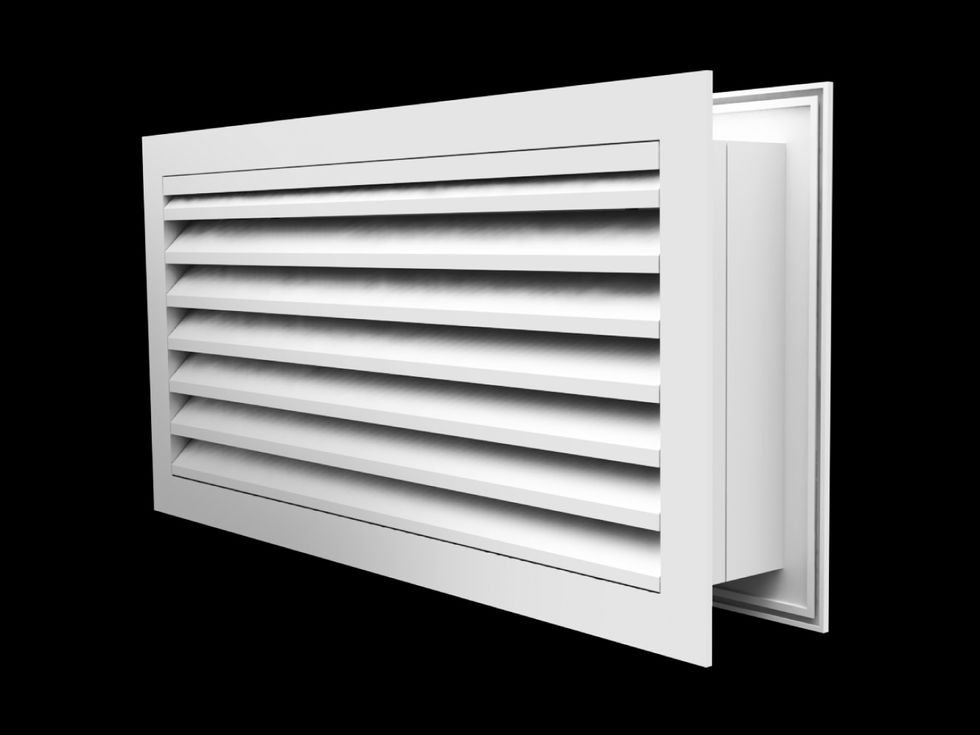

ASV-T: Air Transfer Grilles offer maximum free-flow area and can be equipped with either a see-through or light-blocking inner liner. Designed for installation on doors and partition walls, these grilles feature framed front and back panels for easy and simple installation. They are designed to allow for smooth airflow between spaces, such as storage rooms and bathrooms.

Standard Construction

  • Material: Extruded Aluminum
  • Minimum Size: 100 mm * 100 mm
  • Maximum Size (single piece): 2440 mm * 1220 mm
  • Height: 50mm
  • Oversized construction available with muillions and/or duct channels

Construction Options

  • Blade Position: Parallel to Short or Long Dimension (short leaf/long leaf)
  • Flange: Standard 19/25/32/50mm
  • Core: Standard Fixed Blade/Hinged Type/Key Lock Type/etc.,
  • Accessories: Filter frame (+FF)/Insect screen (+IS)

How to order

  • Aluminum matte white stem with 32mm edge, short leaves, and grid pattern, internal dimensions 500*800 mm.
  • Code: ASV-V/32/+IS/NECK/500*800/Matt White
No additional accessories required
Blank-off Plate (+BP)
Perforated Plate (+PP)
Square to Round Adaptor (+SR)
Wired Mesh (+WM)
Insect Screen Mosquito Net (+IS)

ACCESSORIES

Leaves made along the long side (ASV-T-H)
Leaves made with the short side (ASV-T-V)

BLADE POSITION (RECTANGULAR)

Border Calculation Formula

    border Neck Leaving a roar behind the wall Wind throat Neck height
    20mm B-36mm B-25mm B-30mm 50mm
    25mm B-48mm B-40mm B-45mm 50mm
    32mm B-55mm B-45mm B-50mm 50mm
    • B = Base Size (Meter)
    • Assuming a 25mm edge is chosen, the face value is 400mm.
    • Neck gauge = 352mm
    • Wall-mounted roar space = 360mm
    • Air vent hole = 355mm

Other borders/methods

    • Square tube frame/U-channel frame/flat aluminum frame are available.
    • You can choose to open the door using a hinged door/swing door/lock.
    • For special custom-made services, please contact us.

Frequently Asked Questions

    • Can the neck be thinned?
    • - No, the cypress leaf material is already 45mm high.
    • - A 45-degree angled blade can be used instead, with a neck height of 20mm (see Model ALB4).

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
