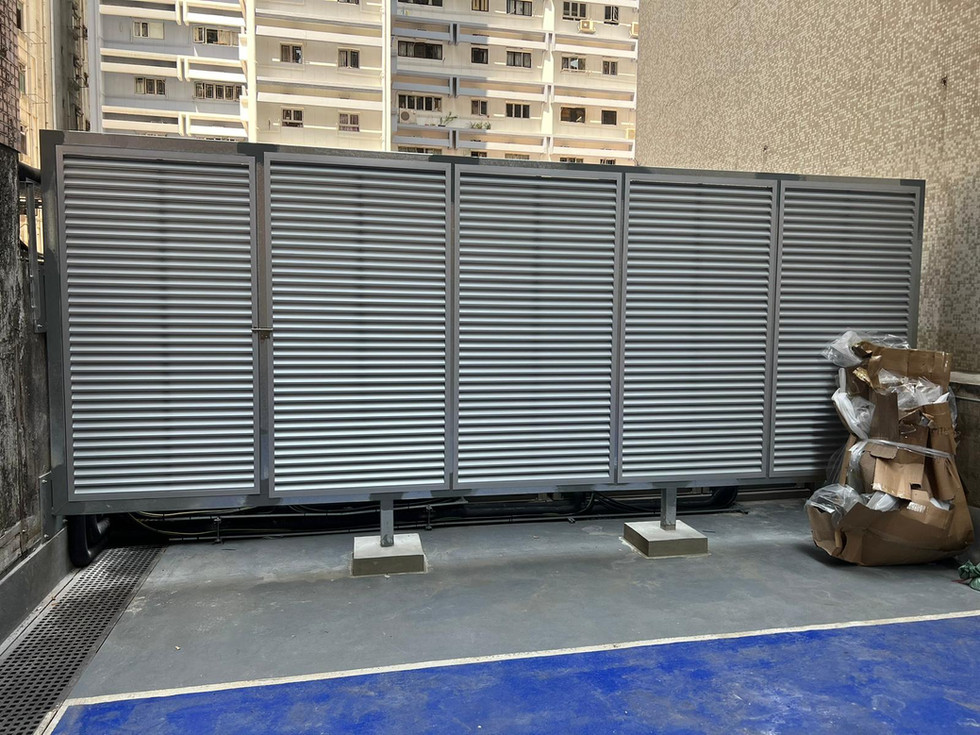

ASV: Aluminum Return Air Louver

The Aluminum Return Air Louver consists of multiple large, approximately 45-degree angled slats horizontally fixed to the outer frame. The slat spacing is determined by the required effective area, providing excellent ventilation. Commonly found in wall-mounted ventilation structures, customers can optionally equip it with mesh/insect netting for even better sound insulation.

Standard Construction

  • Material: Extruded Aluminum
  • Minimum Size: 100 mm * 100 mm
  • Maximum Size (single piece): 1220 mm * 1220 mm
  • Height: 50mm
  • Oversized construction available with muillions and/or duct channels

Construction Options

  • Blade Position: Parallel to Short or Long Dimension (short leaf/long leaf)
  • Flange: Standard 19/25/32/50mm
  • Core: Standard Fixed Blade/Hinged Type/Key Lock Type/etc.,
  • Accessories: Filter frame (+FF)/Insect screen (+IS)

How to order

  • Aluminum matte white stem with 32mm edge, short leaves, and grid pattern, internal dimensions 500*800 mm.
  • Code: ASV-V/32/+IS/NECK/500*800/Matt White
No additional accessories required
Blank-off Plate (+BP)
Perforated Plate (+PP)
Square to Round Adaptor (+SR)
Wired Mesh (+WM)
Insect Screen Mosquito Net (+IS)

ACCESSORIES

Leaves made along the long side (ASV-H)
Leaves made with the short side (ASV-V)

BLADE POSITION (RECTANGULAR)

Border Calculation Formula

    border Neck Leaving a roar behind the wall Wind throat Neck height
    20mm B-36mm B-25mm B-30mm 50mm
    25mm B-48mm B-40mm B-45mm 50mm
    32mm B-55mm B-45mm B-50mm 50mm
    • B = Base Size (Meter)
    • Assuming a 25mm edge is chosen, the face value is 400mm.
    • Neck gauge = 352mm
    • Wall-mounted roar space = 360mm
    • Air vent hole = 355mm

Customized alternatives

    • Square tube frame/U-channel frame/flat aluminum frame are available.
    • You can choose to open the door using a hinged door/swing door/lock.
    • For special custom-made services, please contact us.

Frequently Asked Questions

    • Can the neck be thinned?
    • - No, the cypress leaf material is already 45mm high.
    • - A 45-degree angled blade can be used instead, with a neck height of 20mm (see Model ALB4).

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
