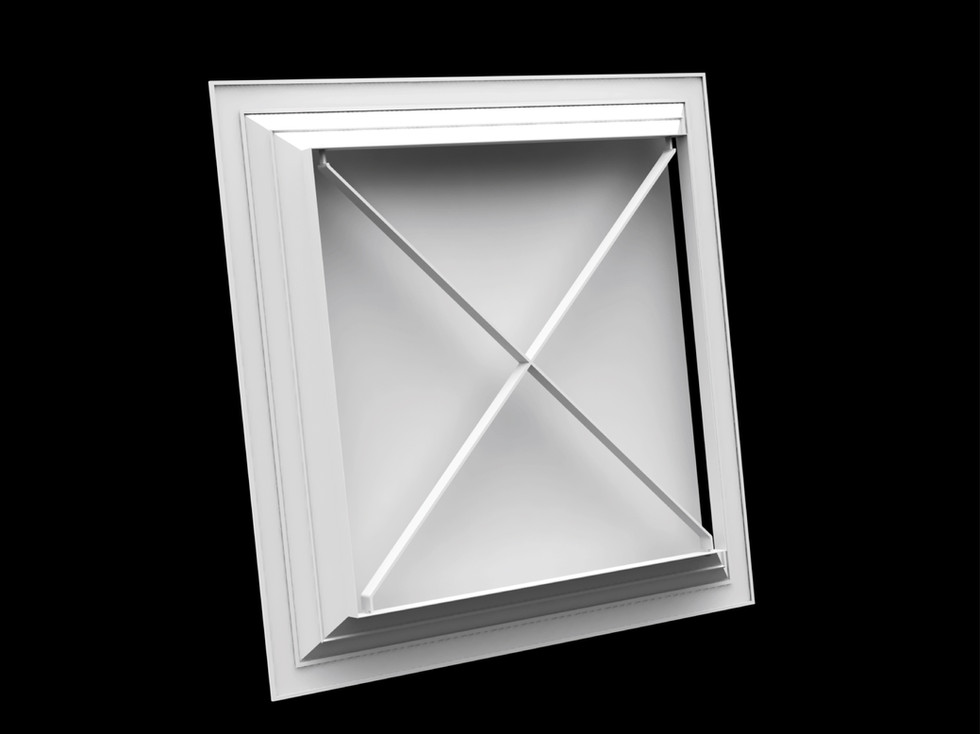

ASCP: Aluminum Square Plaque Diffuser

The Aluminum Square Plaque Diffuser features a flush design, making it ideal for commercial spaces that prioritize architectural aesthetics. The plaque can be fitted with tower insulation to prevent dripping due to temperature differences, and the optimized back panel maintains a level airflow even at low airflow rates. This versatile diffuser is easy to maintain, virtually stains the ceiling, and its surface can be removed without tools for quick access to dampers, fittings, and ductwork.

• Standard sizes are 600*600 / 595*595 / 24"*24".
• Other sizes are available by customization.

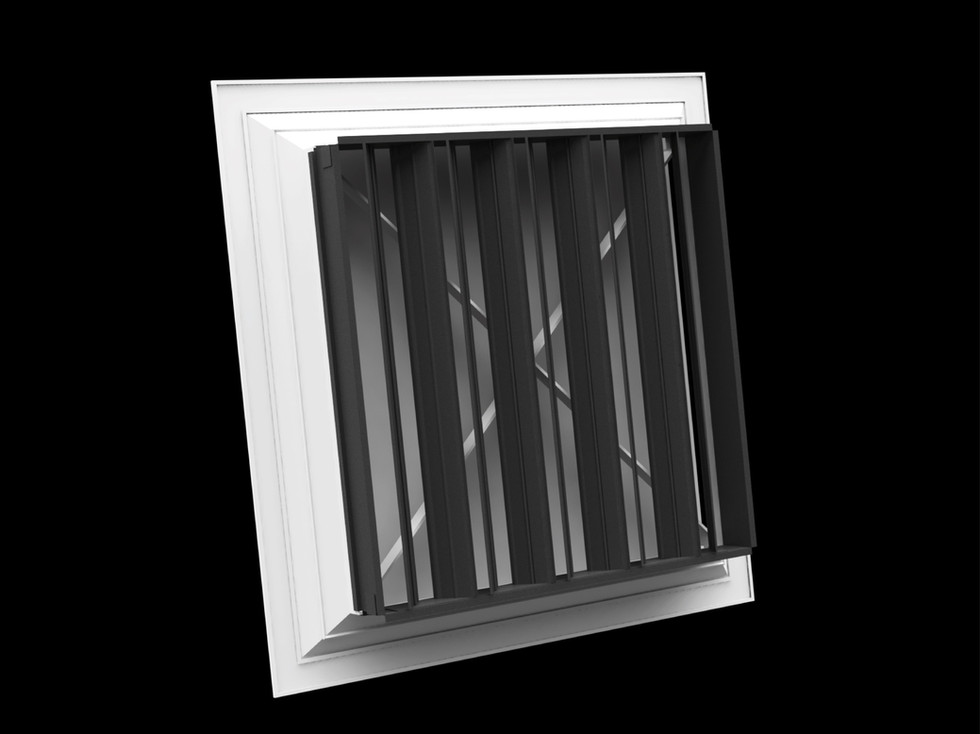

• Can be equipped with OBD (airflow control valve) or bellows insulation.
• Color is customizable (standard is matte white powder coating).
• The maximum size is 800*800 for the facepiece (655*655 for the neckpiece).
• The smallest size is 250*250 for the face mask (105*105 for the neck mask).

Standard dimensions (inner neck = front width minus 145mm, ceiling opening = front width minus 65mm)

• Front 600*600 (Neck 455*455, Ceiling 535*535)
• Face 24*24 (Neck 18-1/4*18-1/4, Ceiling opening 21-1/2*21-1/2)
• Front 550*550 (Neck 405*405, Ceiling 485*485)
• Face 500*500 (Neck 355*355, Ceiling 435*435)
• Front 450*450 (Neck 305*305, Ceiling opening 385*385)
• Front 400*400 (Neck 255*255, Ceiling opening 335*335)
• Front 350*350 (Neck 205*205, Ceiling opening 285*285)
• Front 300*300 (Neck 155*155, Ceiling 235*235)
• Front 250*250 (Neck 105*105, Ceiling opening 185*185)

Temperature difference dripping water is recommended to choose

• Replace the anti-sweat coating nozzle (Product No.: NTSCP)
