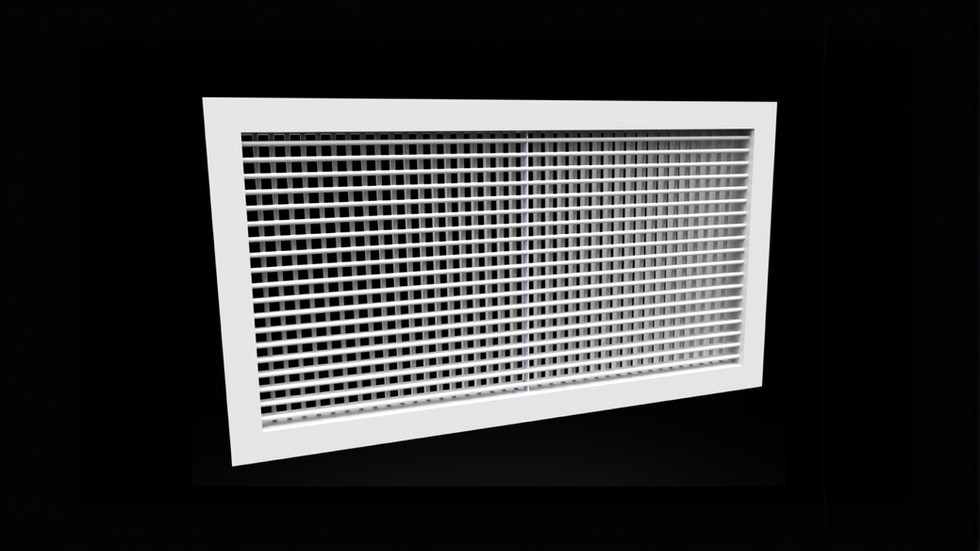

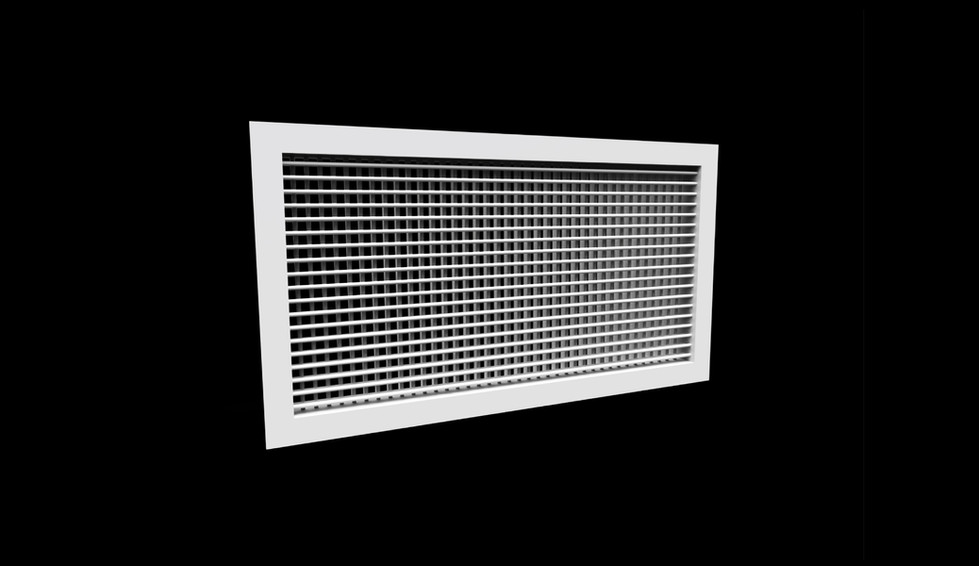

Aluminum Double Deflection Grille

Double Deflection Grille (common: double leaf) is equipped with standard or split air flow control valve (OBD). Unlike ASE single leaf, it has two layers of unidirectional blades that can be adjusted individually to control the air flow direction up, down, left, and right, while the air flow control valve provides air volume control. ASD is very suitable for industrial and commercial, residential, restaurant, parking lot and toilet environment applications.

32 mm Frame (32 sides)
25 mm Frame (25 sides)
20 mm Frame (20 sides)
Other borders

FRAME

No additional accessories required
Opposed Blade Damper (O.B.D.)
Filter Frame (+FF)
Insect Screen (+IS)
Square to Round Adaptor (+SR)

ACCESSORIES

Shorter leaves in front (ASD-V)
Longer leaves in front (ASD-H)

BLADE POSITION (RECTANGULAR)

Border Calculation Formula

    border Neck Tianhua left a roar Wind throat Neck height
    20mm B-24mm B-14mm B-19mm 50mm
    25mm B-36mm B-26mm B-31mm 50mm
    32mm B-50mm B-40mm B-45mm 50mm
    • B = Base Size (Meter)
    • Assuming a 25mm edge is chosen, the face value is 300mm.
    • Neck gauge = 264mm
    • The ceiling height is 274mm.
    • Air vent hole = 269mm

Other borders/methods

    • A frame thickness of less than 20mm is not recommended.
    • Narrower bezels will have less impact on appearance and rigidity, thus reducing the risk of installation distortion.
    • Narrower frames require more precise ceiling openings.

Frequently Asked Questions

    1. Can the neck be thinned?
    • No, the neck depth of double-leafed plants must be at least 50mm. If it is less than 50mm, consider using single-leafed plants (ASE), which only need to be 25~32mm.

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
