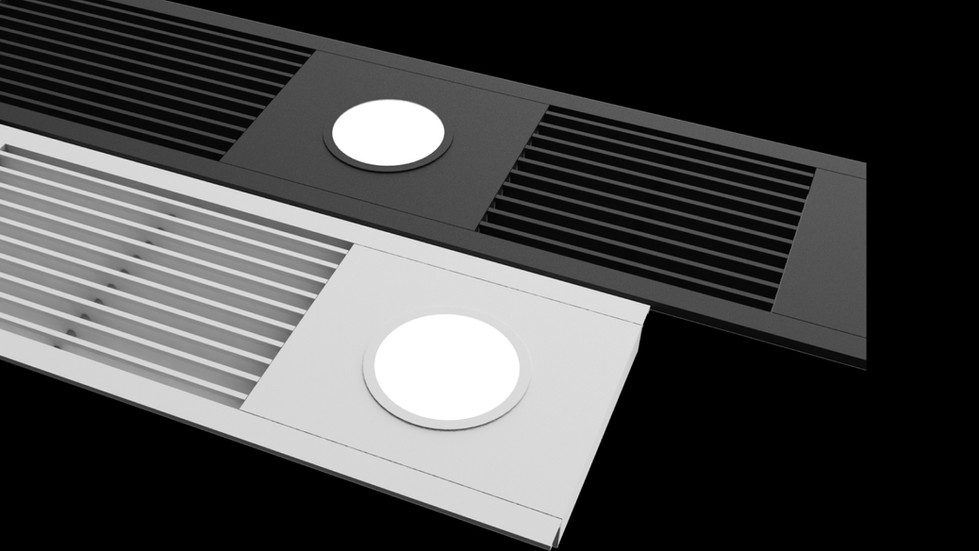

ALD-P: Linear Bar Diffuser c/w Light Panel

The Linear Bar Diffuser c/w Light Panel is an air vent that can be used with lighting fixtures. Customers can customize the style of the spotlights to be round or square.

Standard Construction

  • Material: Extruded Aluminum
  • Nominal length: 150mm - 2500mm
  • Nominal Width: 50mm - 2500mm
  • Oversize: Multiple sections with aglinment pins
  • Curve/Mitered Corner/Trapezium construction also available
  • Finish: Enamel Paint/Powder Coat/Mil Finish/PVDF/etc.,

Options

  • Flange: 19mm/25mm/32mm/Frameless (Model: AFLD-OM)
  • Light head shape selection (square head / round head / open blade head / open blade head with rounded edging)
  • Blade Deflection: 0°/15°/30°/30° Herringbone/45°
  • Core: Removable Core/Fixed
  • Accessories: Blank-off Plate/OBD/Perforated Plate/etc.,
  • Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,

How to order

  • Matte white aluminum 0-degree blade - 19mm edge - movable tube - 300mm central aluminum sheet with open circle diameter 65mm - surface gauge 900*200mm
Custom sizes are available.

BASE SIZE

0 Degree Deflection
15 Degree Deflection
30 Degree Deflection
30 Degree Deflection 2-Ways
45 Degree Deflection

BLADE DEFLECTION

12 mm Frame (4 sides)
20 mm Frame (20 sides)
25 mm Frame (25 sides)
32 mm Frame (32 sides)

FRAME

Fixed Core
Removable Core

CORE

No additional accessories required
Aluminum Air FIlter 20mm thickness (6 minutes thick)
Aluminum Air Filer 25mm thickness (1" thick)
Blank-off Plate
Perforated Plate (吼冚)

ACCESSORIES

Lighting

    • To maintain rigidity, the thickness of standard aluminum lampshade plates is 2 mm or more.

If you need any assistance, you can consult our 24-hour online text customer service / customer service mailbox , and we will provide you with service at any time.
