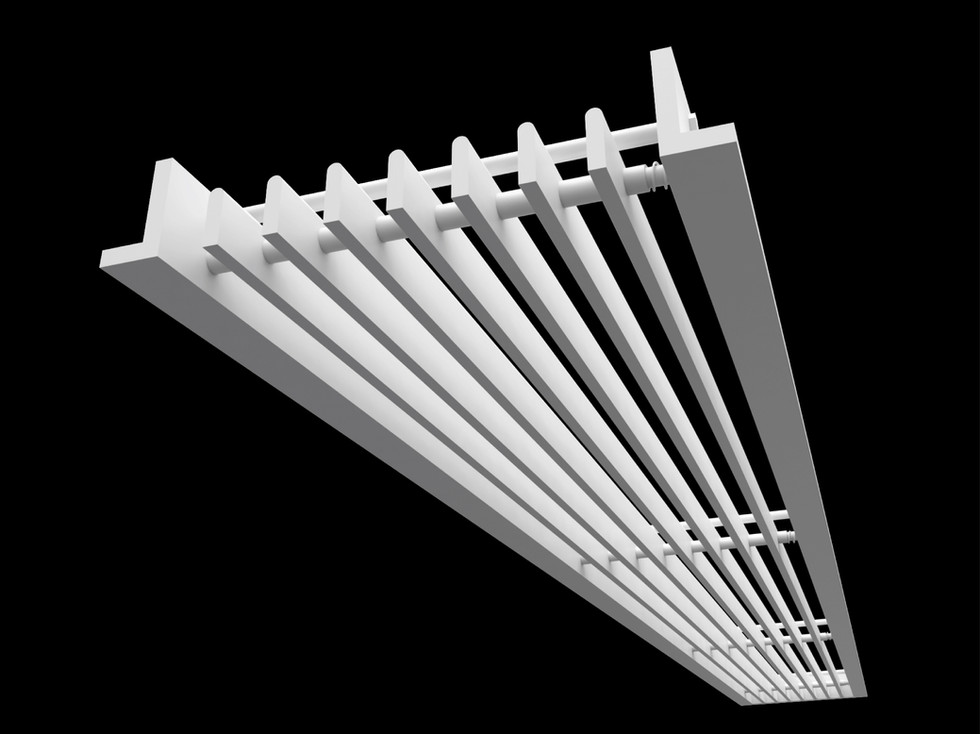

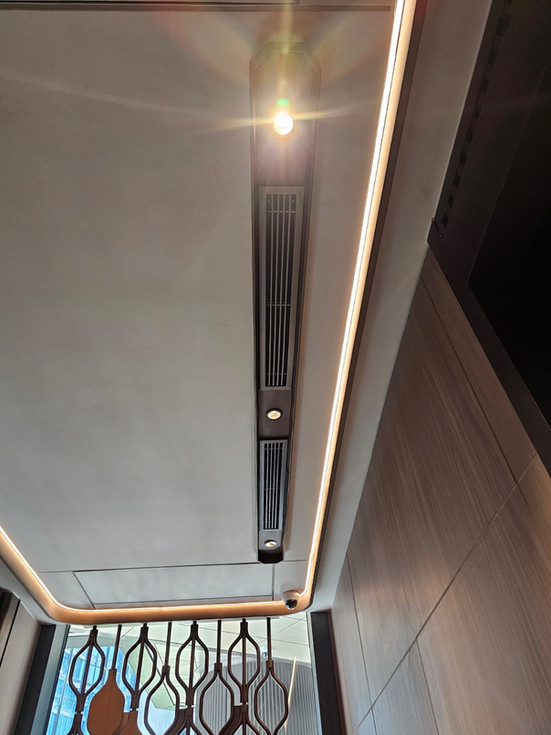

ELD: Fiberwood™ Linear Bar Diffuser
Fiberwood™ Linear Bar Diffuser (纖維線咀) 在溫差較大的位置取代傳統鋁質風咀有助防止倒汗水的滴落。結構部件為纖維樹脂擠壓型材，在材料厚度上比鋁物料多出3-4毫米，增加了硬度及導熱性能。與鋁線咀一樣可以製成任何弧形，梯型，曲尺，斜角等設計。產品依據ANSI/ASHRAE Standard 70-06進行測試，並取得BS476-CLASS 0防火等級消防紙，請與我們聯絡取得所有認證及測試報告。
Standard Construction
- Material: 6mm Extruded Fiberwood
- Nominal Length: 100mm - 2500mm
- Nominal Width: 50mm - 2500mm
- Oversize: Multiple sections with aglinment pins

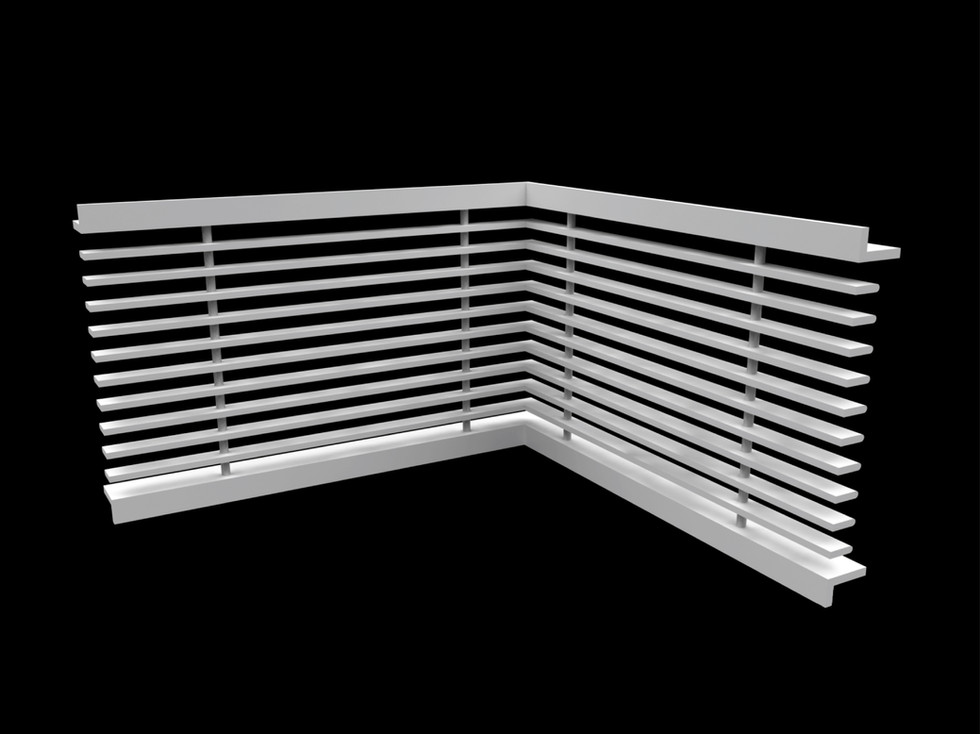

- Curve/Mitered Corner/Trapezium construction also available
- Finish: Enamel Paint/Powder Coat/Woodgrains/etc.,
Options
- Flange: 19mm/25mm/32mm/Frameless (Model: EFLD)
- Blade Deflection: 0°/15°/30°/30°人字/45°
- Core: Removable Core/Fixed
- Accessories: Blank-off Plate/OBD/Perforated Plate/Filters/etc.,
- Color: RAL/PANTONE/NIPPON/DULUX ICI/etc.,
How to order
- 纖維啞白0度葉-19mm邊-活動膽-加黑冚-面計1200*200
- Code: ELD/19/R/BP/1200*200/Matt White
- 纖維跟色30度葉-25mm邊-活動膽-加鋁網-面計2500*300
- Code: ELB1/25/R/AX/2500*300/RAL9001
邊框計算公式
- B=Base Size (面計)
- 假設選用了25mm邊，面計150mm
- 頸計=112mm
- 天花留吼=120mm
- 風喉窿=115mm
- 16MM邊 = 面計-18MM = 內頸足寸 (開窿=面計-10MM)
- 12MM邊 = 面計-10MM = 內頸足寸 (開窿=面計-5MM)
| 邊框 | 頸計 | 天花留吼 | 風喉窿 | 頸高 |
| 20mm | B-26mm | B-15mm | B-20mm | 28mm |
| 25mm | B-38mm | B-30mm | B-35mm | 28mm |
| 32mm | B-50mm | B-42mm | B-47mm | 28mm |
幼邊及尺寸公式 (開窿建議)
風咀頸高 (天花預留深度)
- 幼邊邊框: 28MM頸高，過闊時加背骨作加硬需要30MM頸高。
- 20MM邊: 28MM頸高，過闊時加背扁作加硬需要30MM頸高。
- 25MM邊: 28MM頸高，過闊時加背扁作加硬需要30MM頸高。
- 32MM邊: 28MM或50MM頸高，過闊時加背圓支作加硬。
- 以上最薄可做25MM頸高，但沒有任何位置作加硬處理
風咀頸高
TEST CERTIFICATION
- ANSI/ASHRAE Standard 70-06 "Method of Testing the Performance of Air Outlets and Air Inlets"
- BS 476-6: Fire tests on building materials and structures- Part 6: Method of test for fire propagation for products.
- BS 476-7: Fire tests on building materials and structures-Part 7 method of test to determine the classification of the surface spread of flame of products.
