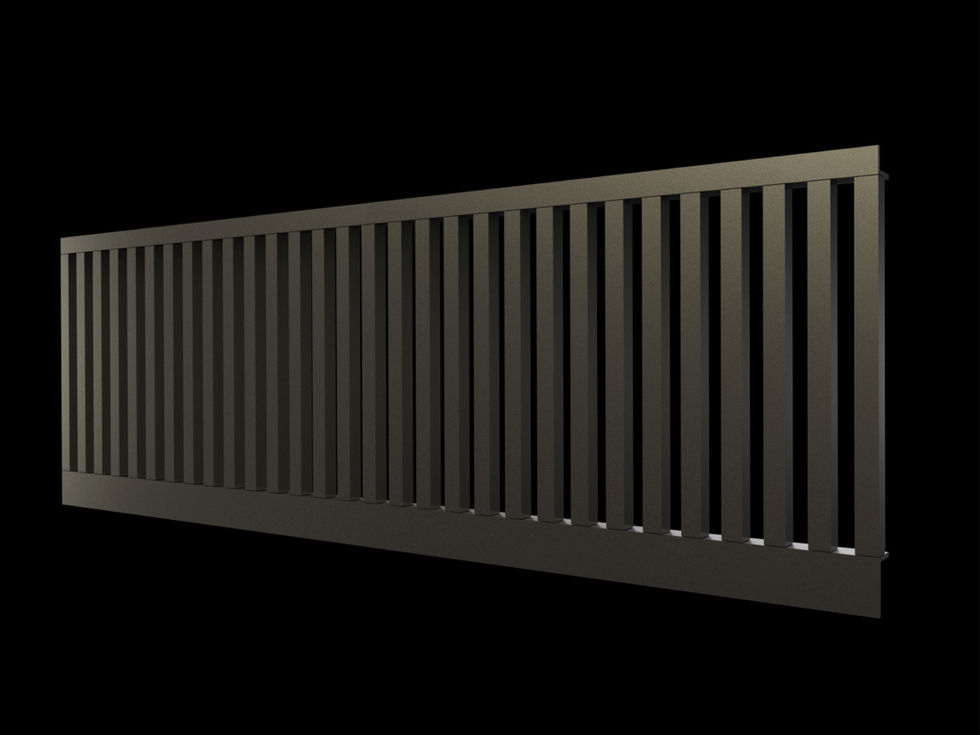

ELD-V/H: Fiber™ Air Grill

Fiber™ Air Grill (纖維條子) 的優點在於避免由溫差引起的倒汗水但仍能保持設計師的設計風格，在設計主導的項目中呈現優美高雅的線條美。條子規格多樣，可以根據客戶提供的CAD設計原檔進行改良。產品依據ANSI/ASHRAE Standard 70-06進行測試，並取得BS476-CLASS 0防火等級消防紙，請與我們聯絡取得所有認證及測試報告。

Construction Options

• Material: Extruded Fiberwood
• Material thickness: 7 / 12 / 20 mm thickness
• Grill Width: 12 x 20 / 7 x 25 / 5 x 18 mm
• Grill Frame (L-Bar): 20 x 35 / 26 x 35 / 52 x 32 mm
• Grill Spacing: Customizable (12 mm standard)
• Finish: Enamel/Powder Coated/Woodgrain/etc.,

Size

• Mininum Size: 100 mm x 100 mm
• Maximum Size (single piece): 1500 mm * 600 mm
• Oversized: Multiple sections with muillions and/or aglinment pins
• Depth/Total thickness: 50mm

How to order

• Please provide your desired hand drawings or CAD drawings
• Code: ELD-V / 12 x 20 Grill / L-BAR 20 x 35 / Base 1200*300 / Matt White
