ASV: Aluminum Return Air Louver

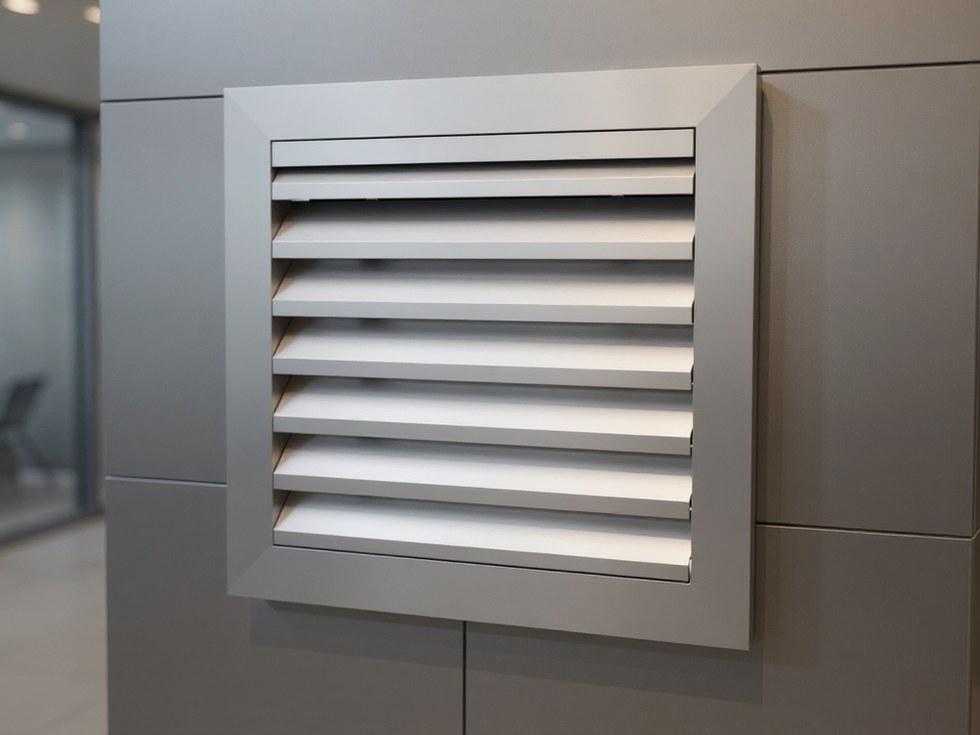

Aluminum Return Air Louver (梗百葉) 由多片約45度斜大葉片水平固定於外框上，葉片距離根據不同有效面積要求而定，具有良好通風性能。常見於牆身通風結構，客戶可選擇性地配有格仔網/防蟲網以達至更理想的阻隔功效。
Standard Construction
- Material: Extruded Aluminum
- Minimum Size: 100 mm * 100 mm
- Maximum Size (single piece): 1220 mm * 1220 mm
- Height: 50mm
- Oversized construction available with muillions and/or duct channels
Construction Options
- Blade Position: Parallel to Short or Long Dimension (短葉/長葉)
- Flange: Standard 19/25/32/50mm
- Core: Standard Fixed Blade/Hinged Type/Key Lock Type/etc.,

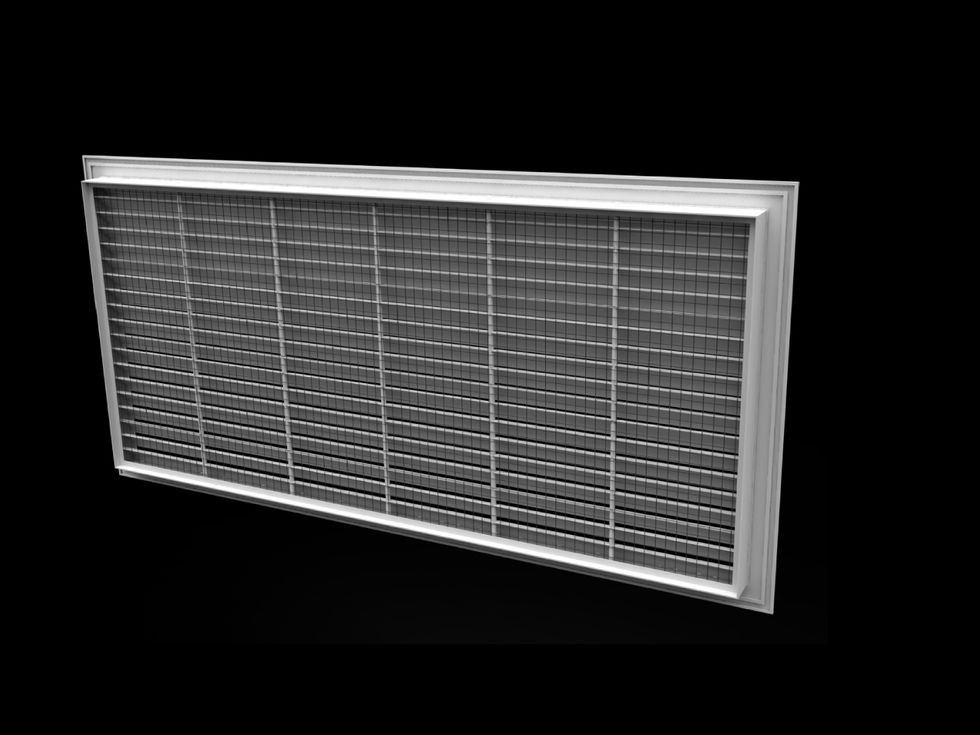

- Accessories: Filter frame (+FF)/Insect screen (+IS)
How to order
- 鋁啞白梗百葉-32mm邊-短葉-加格仔網-內計500*800
- Code: ASV-V/32/+IS/NECK/500*800/Matt White
邊框計算公式
- B=Base Size (面計)
- 假設選用了25mm邊，面計400mm
- 頸計=352mm
- 牆身留吼=360mm
- 風喉窿=355mm
| 邊框 | 頸計 | 牆身留吼 | 風喉窿 | 頸高 |
| 20mm | B-36mm | B-25mm | B-30mm | 50mm |
| 25mm | B-48mm | B-40mm | B-45mm | 50mm |
| 32mm | B-55mm | B-45mm | B-50mm | 50mm |
訂製其他做法
- 可選用方通框/U槽框/扁鋁框
- 可選用門鉸式/開合門/門鎖打開的做法
- 特別做法訂製需與我們聯絡
常見問題
- 頸可以做薄嗎?
- - 不能，柏葉葉片料已有45mm高。
- - 可選用線咀45度斜葉代替，頸高20mm (參閱型號 Model ALB4)。
