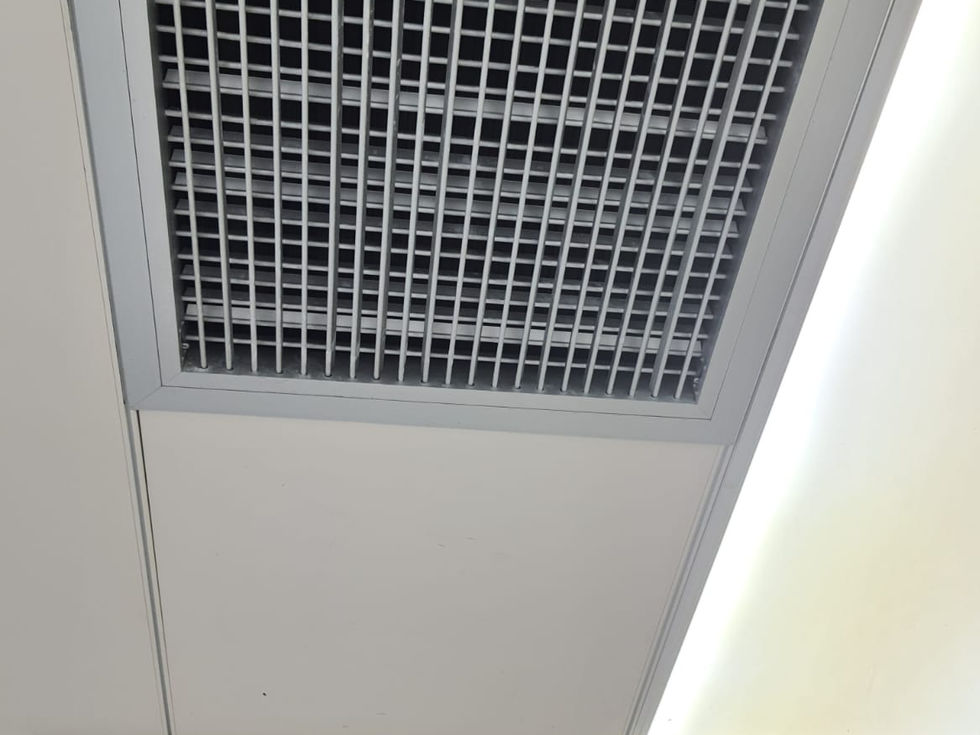

ASBSD: Aluminum Hinged Double Deflection Grille

Hinged Double Deflection Grille (門鉸式雙葉) 配有標準或分離式風量調節閥(OBD)。與ASBSE門鉸式單葉不同之處在於它具有兩層單向葉片可單獨調整以控制上下左右的氣流方向，而風量調節閥則提供風量控制。 ASBSD非常適合工商、住宅、食肆，停車場及廁所等環境應用。

Standard Construction

• Material: Extruded Aluminum
• Nominal Length: 100mm - 2500 mm
• Nominal Width: 50mm - 1200 mm
• Oversize: Multiple sections with mullions
• Depth: 50mm
• Finish: Enamel/Powder Coat/Mil Finish/PVDF/etc.,

Construction Options

• Flange: 12mm/16mm/19mm/25mm/32mm/others
• Blade Position: Front Blade Parallel to Short or Long Dimension
• Core: Hinged Type
• Accessories: Blank-off Plate (+BP) / OBD/ etc.,
• Colour: RAL/PANTONE/NIPPON/DULUX ICI/etc.,

How to order

• 鋁-啞白-門鉸式雙葉-32mm邊-長葉在前-加吼冚-內計800*400
• Code: ASBSD-H/32/+PP/NECK/800*400/Matt White
