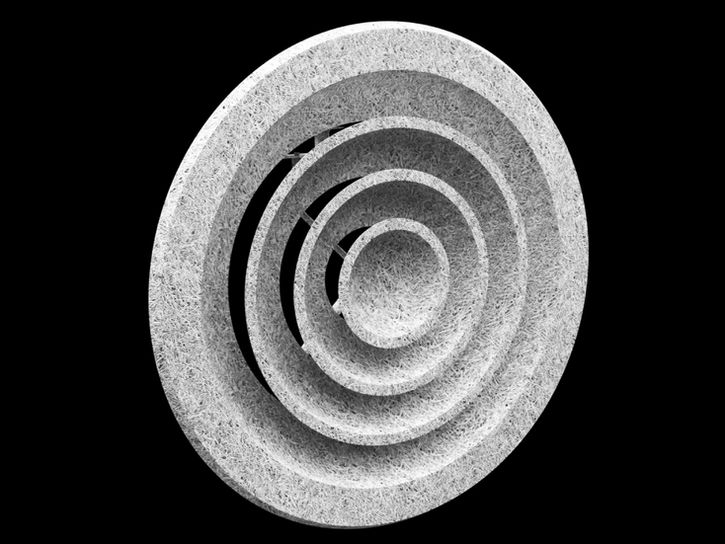

NTR2: Anti-Drop™ Round Ceiling Diffuser (Bowl Shape)
絨面圓塔咀碗形 (抗倒汗水)
Anti-Drop™ Round Ceiling Diffuser Bowl Shape (圓形塔咀) 與圓碟形塔咀(R1) 相比下，圓葉片的弧度更大，氣流更集中，結構上則以X形彈簧骨架取代圓碟形的特製骨架，取出及安裝更輕易亦更穩固。
APPLICATION
THICKNESS
FREE AREA
MATERIAL
FINISH
TEST EVIDENCE
適用於任何圓形管道出風項目，擁有穩定的氣流分佈。
60 mm
Not Available
Aluminum
Anti-Drop™ Fiber Coated
ASHRAE 70-2006 STANDARD "METHOD OF TESTING FOR RATING THE PERFORMANCE OF AIR OUTLETS AND INLETS."
FRAME
BLADE DEFLECTION
CORE
SHAPE
PLENUM BOX
DAMPER
AIR FILTER
BLANK-OFF PLATE
FINISH
COLOR
邊林箱用於產品背面以接駁風喉系統
安裝於產品背面或邊林箱內用以調節風量 (厚度=50 mm)
Not Available
LENGTH
WIDTH
OVERSIZE
RADIUS
NOTES
Standard Size Restricted
Standard Size Restricted
Standard Size Restricted
不適用於弧型結構
BASE SIZE
NECK SIZE
REPLACEMENT
HOW TO ORDER
NOTES
NOTES
面計(直徑) = 產品完成面計
請下載產品結構圖
請下載產品結構圖
例: NTR2 面計600 (內450) 1只
Anti-Drop™ Fiber Coated
ASHRAE 70-2006 STANDARD "METHOD OF TESTING FOR RATING THE PERFORMANCE OF AIR OUTLETS AND INLETS."
Project
我們正在陸續更新其他款式，如有查詢，請電郵至郵箱info@staterich.com.hk或直接致電+852 9680 8015。
